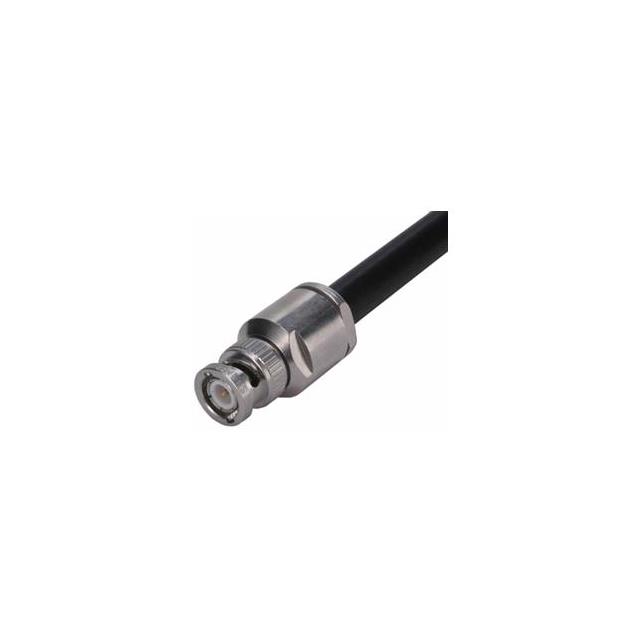

11_BNC-50-7-1/133_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

11_BNC-50-7-1/133_NE

Active

Huber+Suhner, Inc.

11_BNC-50-7-1/133_NE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11_BNC-50-7-1/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-213
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

11_BNC-50 Series

Part	Number of Ports	Body Material	Fastening Type	Body Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Cable Group	Dielectric Material	Housing Color	Frequency - Max [Max]	Shield Termination	Center Contact Plating	Impedance	Mating Cycles	Center Contact Material	Connector Type	Voltage Rating	Connector Style	Contact Termination
Huber+Suhner, Inc. 11_BNC-50-4-53/133_NE
Huber+Suhner, Inc. 11_BNC-50-3-5/133_NE	1	Brass	Bayonet Lock	White Bronze	Free Hanging (In-Line)	-65 ░C	165 °C	RG-58	142 223 400	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	4 GHz	Clamp	Gold	50 Ohms	500	Brass	Male Pin Plug	500 V	BNC	Solder
Huber+Suhner, Inc. 11_BNC-50-4-4/133_NE	1	Brass	Bayonet Lock	White Bronze	Free Hanging (In-Line)	-65 ░C	165 °C	RG-59		Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	4 GHz	Crimp	Gold	50 Ohms	500	Brass	Male Pin Plug	500 V	BNC	Crimp
Huber+Suhner, Inc. 11_BNC-50-7-1/133_NE	1	Brass	Bayonet Lock	White Bronze	Free Hanging (In-Line)	-65 ░C	165 °C	RG-213		Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	4 GHz	Clamp	Gold	50 Ohms	500	Brass	Male Pin Plug	500 V	BNC	Solder
Huber+Suhner, Inc. 11_BNC-50-3-36/133_NE	1	Brass	Bayonet Lock	White Bronze	Free Hanging (In-Line)	-65 ░C	165 °C			Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	4 GHz	Crimp	Gold	50 Ohms	500	Brass	Male Pin Plug	500 V	BNC	Crimp
Huber+Suhner, Inc. 11_BNC-50-7-6/133_NE	1	Brass	Bayonet Lock	White Bronze	Free Hanging (In-Line)	-65 ░C	165 °C	RG-214		Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	4 GHz	Crimp	Gold	50 Ohms	500	Brass	Male Pin Plug	500 V	BNC	Crimp
Huber+Suhner, Inc. 11_BNC-50-2-34/133_NE	1	Brass	Bayonet Lock	White Bronze	Free Hanging (In-Line)	-65 ░C	165 °C	RD-316		Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	4 GHz	Crimp	Gold	50 Ohms	500	Brass Bronze	Male Pin Plug	500 V	BNC	Crimp
Huber+Suhner, Inc. 11_BNC-50-4-28/133_NE
Huber+Suhner, Inc. 11_BNC-50-2-13/133_NE	1	Brass	Bayonet Lock	White Bronze	Free Hanging (In-Line)	-65 ░C	165 °C	188 316 RG-174		Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	4 GHz	Crimp	Gold	50 Ohms	500	Brass Bronze	Male Pin Plug	500 V	BNC	Crimp
Huber+Suhner, Inc. 11_BNC-50-3-16/133_NE	1	Brass	Bayonet Lock	White Bronze	Free Hanging (In-Line)	-65 ░C	165 °C	RG-223		Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	4 GHz	Crimp	Gold	50 Ohms	500	Brass	Male Pin Plug	500 V	BNC	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.69
		10	$ 41.01
		25	$ 39.44
		50	$ 38.12
		100	$ 36.02
		250	$ 34.97

Description

General part information

11_BNC-50 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
