PHP16-5,00

Active

Altech Corporation

PCB HEADER5MMPSCLOSED END 16P HO

Search across all available documentation for this part.

Active

Altech Corporation

PCB HEADER5MMPSCLOSED END 16P HO

Technical Specifications

Parameters and characteristics for this part

Specification	PHP16-5,00

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Current - IEC	16 A
Current - UL	12 A
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA), Nylon
Insulation Height	1.122 in
Insulation Height	28.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	16
Operating Temperature	105 C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	16
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	450 V
Voltage - UL	300 V

Part	Number of Positions	Insulation Height	Insulation Height	Mounting Type	Contact Material	Voltage - IEC	Voltage - UL	Type	Number of Levels	Operating Temperature	Color	Material Flammability Rating	Housing Material	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Positions Per Level	Contact Mating Finish	Header Orientation	Current - IEC	Current - UL	Termination Style
Altech Corporation PHP16-5,00	16	1.122 in	28.5 mm	Through Hole	Brass	450 V	300 V	Header Male Pins Shrouded (4 Side)	1	105 C	Green	UL94 V-0	Polyamide (PA) Nylon	0.157 in	4 mm	5 mm	0.197 in	16	Tin	90° Right Angle	16 A	12 A	Solder
Altech Corporation PHP16-3,50
Altech Corporation PHP16-5,08

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

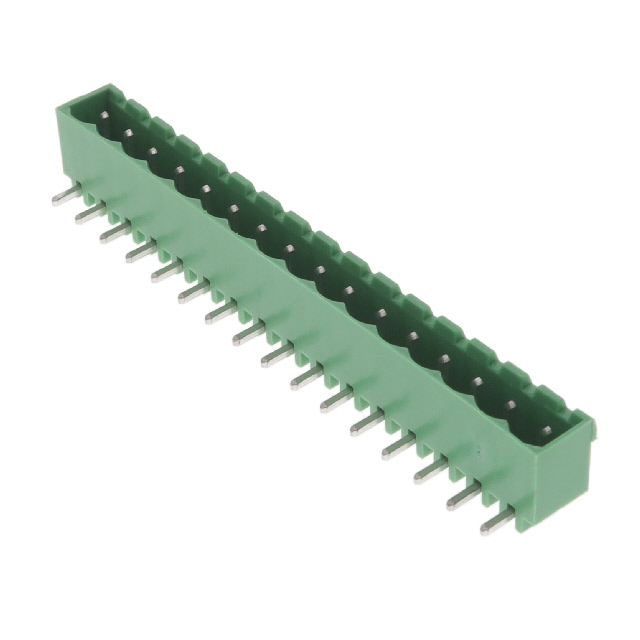

16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
