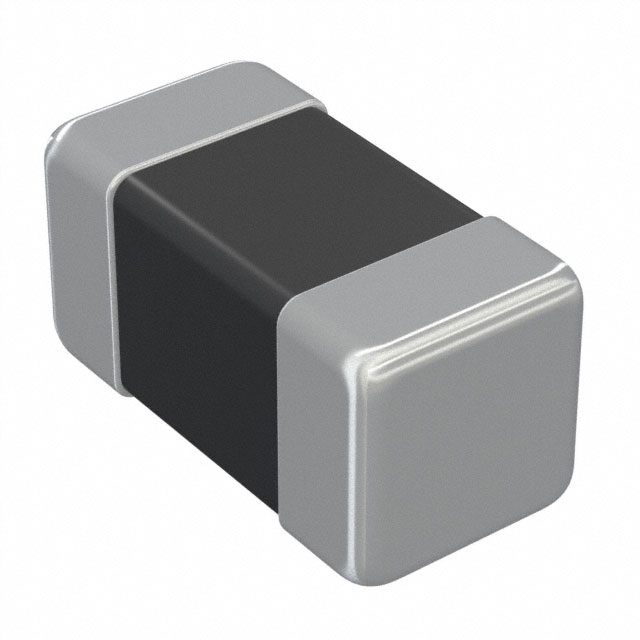

AMK105BJ335MV-F

TAIYO YUDEN

SMD MULTILAYER CERAMIC CAPACITOR, 3.3 ΜF, 4 V, 0402 [1005 METRIC], ± 20%, X5R

Search across all available documentation for this part.

TAIYO YUDEN

SMD MULTILAYER CERAMIC CAPACITOR, 3.3 ΜF, 4 V, 0402 [1005 METRIC], ± 20%, X5R

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Mounting Type	Tolerance	Capacitance	Applications	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Thickness (Max) [Max]	Thickness (Max) [Max]	Ratings
TAIYO YUDEN AMK105BJ225MV-F	0402 (1005 Metric)	MLCC Surface Mount	20 %	2.2 µF	SMPS Filtering	4 V	85 °C	-55 °C	X5R	1 mm	0.02 in	0.5 mm	0.039 in	0.022 in	0.55 mm
TAIYO YUDEN AMK105BJ475MV-F	0402 (1005 Metric)	MLCC Surface Mount	20 %	4.7 µF	SMPS Filtering	4 V	85 °C	-55 °C	X5R	1 mm	0.02 in	0.5 mm	0.039 in	0.022 in	0.55 mm
TAIYO YUDEN AMK105BJ335MV-F	0402 (1005 Metric)	MLCC Surface Mount	20 %	3.3 µF	SMPS Filtering	4 V	85 °C	-55 °C	X5R	1 mm	0.02 in	0.5 mm	0.039 in	0.022 in	0.55 mm
TAIYO YUDEN AMK105B7474KVHF	0402 (1005 Metric)	MLCC Surface Mount	10 %	0.47 µF	Automotive	4 V	125 °C	-55 °C	X7R	1 mm	0.02 in	0.5 mm	0.039 in	0.022 in	0.55 mm	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.3 µF ±20% 4V Ceramic Capacitor X5R 0402 (1005 Metric)

Technical documentation and resources
