HAN U HOOD COUPLER 1 LEVER PG ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN U HOOD COUPLER 1 LEVER PG ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Thread Size	Lock Location	Connector Type	Style	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Housing Color	Features
HARTING Technology Group 09360031640	PG11	Locking Clip (1) on Base Bottom	Hood	Side Entry	1.102 in	54.4 mm	1.063 in	2.142 "	28 mm	27 mm
HARTING Technology Group 09360031250	PG11	Locking Clip (1) on Base Bottom	Base - Panel Mount 90°	Side Entry
HARTING Technology Group 09360031750	PG11	Locking Clip (1) on Hood Top	Hood - Coupling	Bottom Entry	0.953 in	58.4 mm	0.953 in	2.299 "	24.2 mm	24.2 mm	Blue	Cable to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

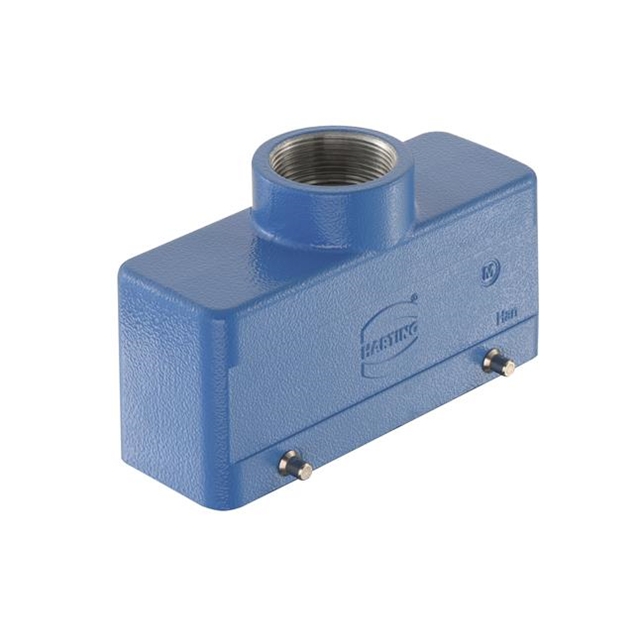

Hood - Coupling Connector Bottom Entry PG11
