CS42L92-CWZR
ActiveCirrus Logic Inc.
IC - HI-FI AUDIO CODEC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS42L92-CWZR
ActiveCirrus Logic Inc.
IC - HI-FI AUDIO CODEC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS42L92-CWZR |
|---|---|
| Data Interface | SLIMbus |
| Mounting Type | Surface Mount |
| Number of ADCs / DACs [custom] | 4 |
| Number of ADCs / DACs [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

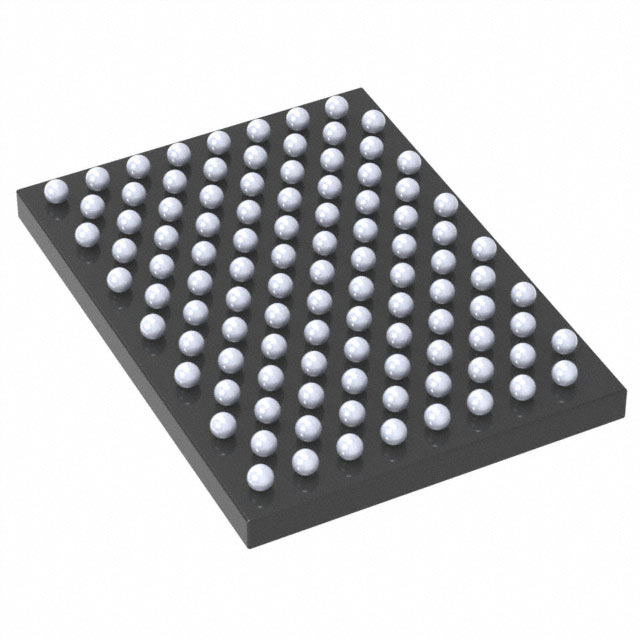

| Package / Case | WLCSP, 104-UFBGA |
| Resolution (Bits) | 32 b |
| Sigma Delta | True |
| Supplier Device Package | 104-WLCSP |
| Supplier Device Package [x] | 4.78 |
| Supplier Device Package [y] | 3.47 |
| Type | Audio |
| Voltage - Supply, Analog [Max] | 1.89 V |
| Voltage - Supply, Analog [Min] | 1.71 V |
| Voltage - Supply, Digital [Max] | 3.6 V |
| Voltage - Supply, Digital [Min] | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 14.40 | |
| 10 | $ 13.24 | |||
| 25 | $ 12.69 | |||
| 100 | $ 11.18 | |||
| 250 | $ 10.63 | |||
| 500 | $ 9.94 | |||
| 1000 | $ 9.12 | |||
| Digi-Reel® | 1 | $ 14.40 | ||
| 10 | $ 13.24 | |||
| 25 | $ 12.69 | |||
| 100 | $ 11.18 | |||
| 250 | $ 10.63 | |||
| 500 | $ 9.94 | |||
| 1000 | $ 9.12 | |||
| Tape & Reel (TR) | 6000 | $ 8.49 | ||
Description
General part information
CS42L92 Series
Audio Interface 32 b SLIMbus 104-WLCSP (4.78x3.47)
Documents
Technical documentation and resources
