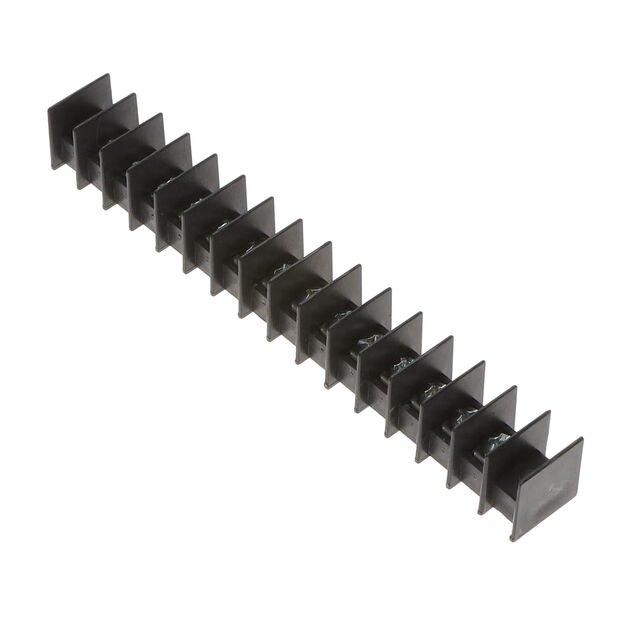

325008-14-0
ActiveCurtis Industries
CONN BARRIER STRP 14CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325008-14-0
ActiveCurtis Industries
CONN BARRIER STRP 14CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325008-14-0 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Current Rating (Amps) | 15 A |
| Features | Flange |
| Material - Insulation | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 14 |
| Number of Rows | 1 |
| Number of Wire Entries | 14 |
| Operating Temperature | 105 C |
| Pitch [x] | 8.26 mm |
| Pitch [x] | 0.325 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Material | Steel |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.38 | |
| 10 | $ 9.75 | |||
| 30 | $ 9.30 | |||
| 50 | $ 8.36 | |||
| 100 | $ 7.92 | |||
| 250 | $ 7.18 | |||
| 500 | $ 6.68 | |||
| 1000 | $ 6.31 | |||
Description
General part information
325008 Series
14 Circuit 0.325" (8.26mm) Barrier Block Connector Screws with Captive Plate
