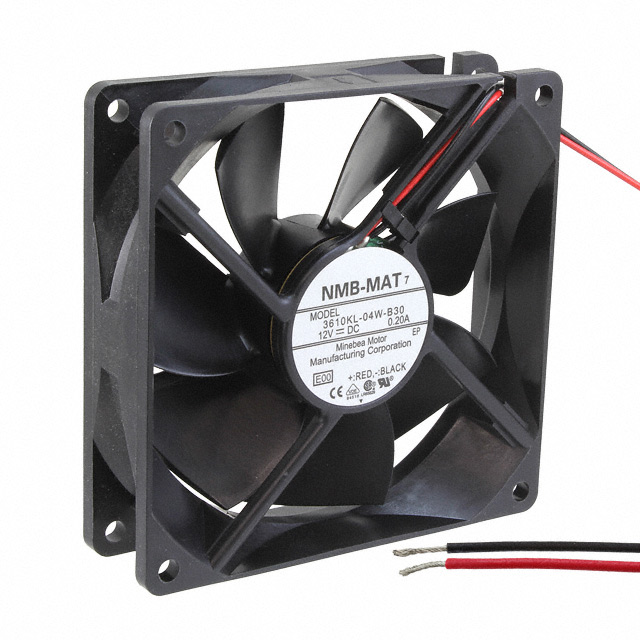

3610KL-04W-B30-E00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans & Blowers Catalog +1

3610KL-04W-B30-E00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3610KL-04W-B30-E00

Air Flow	1.14 m³/min
Air Flow	40.6 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	100000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	34 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.92 W
RPM	2450 RPM
Static Pressure	27 Pa
Static Pressure	0.108 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Width [y]	25 mm

3610KL Series

Part	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Current Rating (Amps)	Approval Agency	Width [y]	Bearing Type	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Static Pressure	Static Pressure	Air Flow	Air Flow	Material - Blade	Voltage - Rated	Power (Watts)	Fan Type	RPM	Material - Frame	Features
NMB TECHNOLOGIES 3610KL-05W-B40-D00	10 VDC	27.6 VDC	70000 Hrs	120 mA	CE CSA UL VDE	25 mm	Ball	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	37.5 dB(A)	0.149 in H2O	37.1 Pa	1.33 mł/min	47.6 CFM	Plastic	24 VDC	2.88 W	Tubeaxial	2850 RPM	Plastic
NMB TECHNOLOGIES 3610KL-05W-B40-E00	10 VDC	27.6 VDC	100000 Hrs	120 mA	CE CSA UL VDE	25 mm	Ball	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	37.5 dB(A)	0.15 in H2O	37.4 Pa	1.33 mł/min	47.6 CFM	Plastic	24 VDC	2.88 W	Tubeaxial	2850 RPM	Plastic
NMB TECHNOLOGIES 3610KL-04W-B59-D50	6 VDC	13 VDC	70000 Hrs	0.315 A	CE CSA UL VDE	25 mm	Ball	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	41 dB	0.192 in H2O	48 Pa	1.53 mł/min	54.7 CFM	Plastic	12 VDC	3.75 W	Tubeaxial	3200 RPM	Plastic	Speed Sensor (Tach)
NMB TECHNOLOGIES 3610KL-05W-B40-G00	10 VDC	27.6 VDC	70000 Hrs	120 mA	CE CSA UL VDE	25 mm	Ball	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	37.5 dB(A)	0.149 in H2O	37.1 Pa	1.33 mł/min	47.6 CFM	Plastic	24 VDC	2.88 W	Tubeaxial	2850 RPM	Plastic
NMB TECHNOLOGIES 3610KL-05W-B50-D00	10 VDC	25 VDC	70000 Hrs		CE CSA UL VDE	25 mm	Ball	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	41 dB	0.192 in H2O	48 Pa	1.53 mł/min	54.7 CFM	Plastic	24 VDC	3.84 W	Tubeaxial	3200 RPM	Plastic
NMB TECHNOLOGIES 3610KL-04W-B20-G00	6 VDC	13.8 VDC	70000 Hrs	110 mA	CE CSA UL VDE	25 mm	Ball	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	29.5 dB(A)	0.081 in H2O	20.1 Pa	0.938 mł/min	33.5 CFM	Plastic	12 VDC	1.32 W	Tubeaxial	2100 RPM	Plastic
NMB TECHNOLOGIES 3610KL-05W-B30-E00	10 VDC	27.6 VDC	100000 Hrs	0.09 A	CE CSA UL VDE	25 mm	Ball	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	34 dB(A)	0.108 in H2O	27 Pa	1.14 m³/min	40.6 CFM	Plastic	24 VDC	2.16 W	Tubeaxial	2450 RPM	Plastic
NMB TECHNOLOGIES 3610KL-04W-B30-E00	6 VDC	13.8 VDC	100000 Hrs		CE CSA UL VDE	25 mm	Ball	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	34 dB(A)	0.108 in H2O	27 Pa	1.14 m³/min	40.6 CFM	Plastic	12 VDC	1.92 W	Tubeaxial	2450 RPM	Plastic
NMB TECHNOLOGIES 3610KL-04W-B10-E00	6 VDC	13.8 VDC	100000 Hrs	0.073 A	CE CSA UL VDE	25 mm	Ball	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	25 dB(A)	0.057 in H2O	14.2 Pa	0.742 m³/min	26.5 CFM	Plastic	12 VDC	880 mW	Tubeaxial	1750 RPM	Plastic
NMB TECHNOLOGIES 3610KL-04W-B60-D00			70000 Hrs	430 mA	CE CSA UL VDE	25 mm	Ball	2 Wire Leads	50 °C	50 °C	-10 °C	-10 °C	44.5 dB	0.229 in H2O	57 Pa	1.73 mł/min	61.8 CFM	Plastic	12 VDC	5.16 W	Tubeaxial	3600 RPM	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3610KL Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 40.6 CFM (1.14m³/min) 2 Wire Leads
