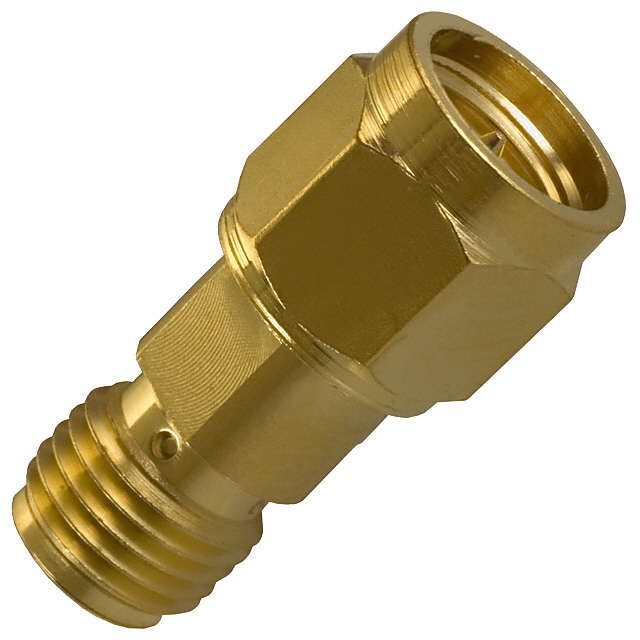

142-0901-821

Active

Cinch Connectivity Solutions Johnson

COAX ADAPT SMA TO SMA

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

COAX ADAPT SMA TO SMA

Technical Specifications

Parameters and characteristics for this part

Specification	142-0901-821

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Impedance	Body Material	Adapter Series	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Center Contact Material	Dielectric Material	Adapter Type	Convert To (Adapter End)	Conversion Type	Body Finish	Style	Mounting Type	Mating Cycles	Center Contact Plating	Convert From (Adapter End)
Cinch Connectivity Solutions Johnson 142-0901-821	50 Ohms	Brass	SMA to SMA	-65 ░C	165 °C	18 GHz	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Plug to Jack	Male Pin SMA Plug	Same Series	Gold	Straight	Free Hanging (In-Line)	500	Gold	Female Socket SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
