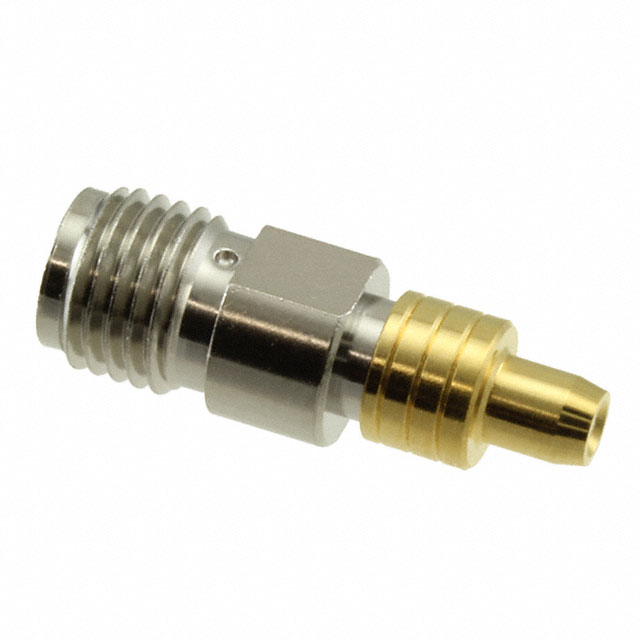

HRMJ-X.FLP-ST3

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA JACK TO X.FL PLUG

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA JACK TO X.FL PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	HRMJ-X.FLP-ST3

Adapter Series	SMA to X.FL
Adapter Type	Plug to Jack
Body Finish	Nickel; Passivated
Body Material	Brass, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	X.FL Plug, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Style	1st Contact Gender	2nd Connector	Color	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Cable Type [diameter]	2nd Contact Gender	Overall Impedance	Features	Frequency - Max [Max]	Length [x]	Length [x]	1st Connector	Convert From (Adapter End)	Adapter Series	Body Finish	Center Gender	Mating Cycles	Adapter Type	Convert To (Adapter End)	Center Contact Plating	Impedance	Fastening Type	Conversion Type	Dielectric Material	Center Contact Material	Body Material	Mounting Type	Length	Length
Hirose Electric USA, Inc. HRMJ-X.FL-068K3TS-A-100RS	SMA to X.FL	Female	X.FL Plug Right Angle	White	90 °C	-40 °C	Coaxial Cable	0.81 mm	Female	50 Ohms	Shielded	6000 MHz	0.1 m	3.937 in	SMA Jack
Hirose Electric USA, Inc. HRMJ-X.FLP-ST3	Straight				85 °C	-40 °C						12 GHz				Female Socket SMA Jack	SMA to X.FL	Nickel; Passivated	Female to Female	500	Plug to Jack	Female Socket X.FL Plug	Gold	50 Ohms	Snap-On Threaded	Between Series	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass Stainless Steel	Free Hanging (In-Line)
Hirose Electric USA, Inc. HRMJ-X.FL-04N1-A-300RS	SMA to X.FL	Female	X.FL Plug Right Angle	White	90 °C	-40 °C	Coaxial Cable	0.81 mm	Female	50 Ohms	Shielded	6000 MHz	300 mm	11.811 in	SMA Jack
Hirose Electric USA, Inc. HRMJ-X.FL-04N1-A-80RS	SMA to X.FL	Female	X.FL Plug Right Angle	White	90 °C	-40 °C	Coaxial Cable	0.81 mm	Female	50 Ohms	Shielded	6000 MHz			SMA Jack																0.08 m	3.15 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 78.95

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To X.FL Plug, Female Socket 50 Ohms
