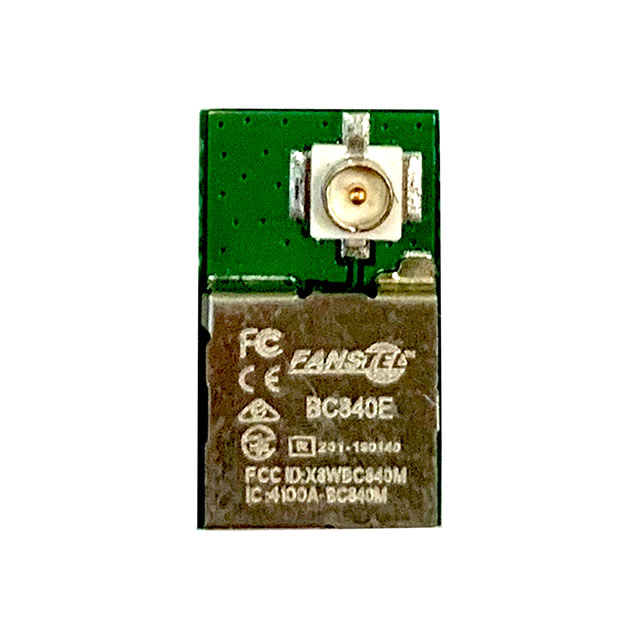

BC840E

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BTU.FL SMD

Search across all available documentation for this part.

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BTU.FL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Type	For Use With/Related Products	Memory Size	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Power - Output	Frequency	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Data Rate	Package / Case	Antenna Type	Serial Interfaces
Fanstel Corp. EV-BC840E-P	Antenna(s) Board(s)	802.15.4 (Thread Zigbee®) ANT Bluetooth® 5.x (BLE) Transceiver	BC840E-p nRF52840
Fanstel Corp. BC840E				1 MB 256 kB	nRF52840-CKAA	85 °C	-40 °C	802.15.4 Bluetooth	8 dBm	2.4 GHz	Surface Mount	5.5 V	1.7 V	Bluetooth v5.0 Thread Zigbee®	2 Mbps	64-SMD Module	Antenna Not Included U.FL	ADC GPIO I2C I2S PWM SPI UART USB
Fanstel Corp. BC840M				1 MB 256 kB	nRF52840-CKAA	85 °C	-40 °C	802.15.4 Bluetooth	8 dBm	2.4 GHz	Surface Mount	5.5 V	1.7 V	Bluetooth v5.0 Thread Zigbee®	2 Mbps	64-SMD Module	PCB Trace	ADC GPIO I2C I2S PWM SPI UART USB
Fanstel Corp. EV-BC840-P	Board(s)	802.15.4 (Thread Zigbee®) ANT Bluetooth® 5.x (BLE) Transceiver	BC840-p nRF52840
Fanstel Corp. EV-BC840M-P	Board(s)	802.15.4 (Thread Zigbee®) ANT Bluetooth® 5.x (BLE) Transceiver	BC840M-p nRF52840

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
