717-4-M8X1-C-ST

Active

J.W. Winco

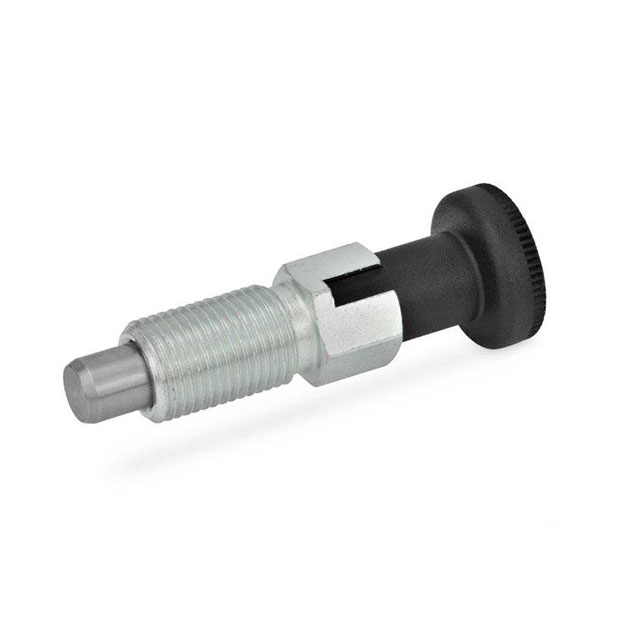

STEEL INDEXING PLUNGER

Search across all available documentation for this part.

Active

J.W. Winco

STEEL INDEXING PLUNGER

Technical Specifications

Parameters and characteristics for this part

Part	Type	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]
J.W. Winco 717-4-M8X1-B-ST	Ball Plunger	40.39 mm	4.06 mm	1.59 "	0.16 in
J.W. Winco 717-4-M8X1-CK-ST	Ball Plunger	40.39 mm	4.06 mm	1.59 "	0.16 in
J.W. Winco 717-4-M6-BK-NI	Indexing Plunger
J.W. Winco 717-4-M6-C-ST	Ball Plunger		4.06 mm		0.16 in	1.32 "	33.53 mm
J.W. Winco 717-4-M6-AK-NI	Indexing Plunger
J.W. Winco 717-4-M8X1-CK-NI	Indexing Plunger
J.W. Winco 717-4-M6-AK-ST	Ball Plunger		4.06 mm		0.16 in	1.32 "	33.53 mm
J.W. Winco 717-4-M8X1-C-ST	Ball Plunger	40.39 mm	4.06 mm	1.59 "	0.16 in
J.W. Winco 717-4-M6-DK-ST	Ball Plunger		4.06 mm		0.16 in	1.32 "	33.53 mm
J.W. Winco 717-4-M8X1-AK-NI	Indexing Plunger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.01

General part information

Plunger, Ball 0.16" Dia x 1.59" L (4.06mm x 40.39mm)

Technical documentation and resources
