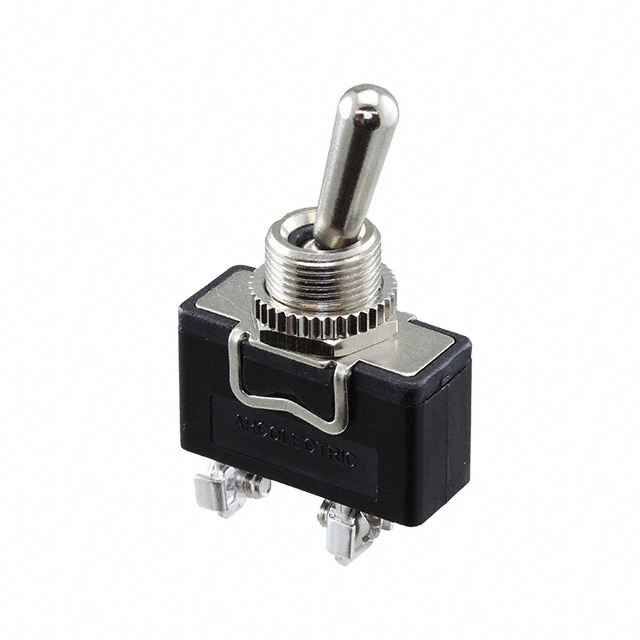

S3900BA
ActiveBULGIN LIMITED
SWITCH TOGGLE SPST 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S3900BA
ActiveBULGIN LIMITED
SWITCH TOGGLE SPST 20A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S3900BA |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | SPST |
| Current Rating (Amps) | 20 A, 14 A |
| Illumination | Non-Illuminated |
| Panel Cutout Dimensions [diameter] | 12.7 mm |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.84 | |
| 10 | $ 6.77 | |||
| 25 | $ 6.38 | |||
| 50 | $ 6.10 | |||
| 100 | $ 5.84 | |||
| 250 | $ 5.50 | |||
| 500 | $ 5.26 | |||
| 1000 | $ 5.03 | |||
Description
General part information
S3900 Series
Toggle Switch SPST Panel Mount
