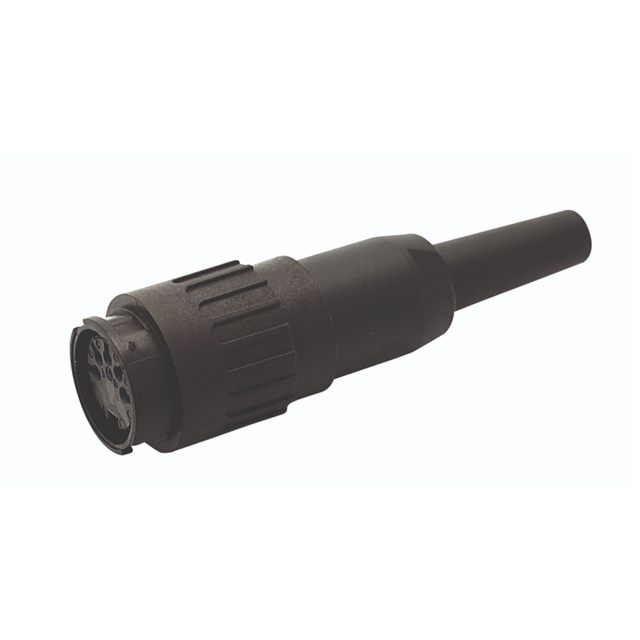

T 3528 501
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 8P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T 3528 501
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 8P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3528 501 |
|---|---|
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 7 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ingress Protection | IP40 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Plastic |
| Shell Size - Insert | M16-8 |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.78 | |
| 10 | $ 15.23 | |||
| 25 | $ 13.78 | |||
| 50 | $ 12.80 | |||
| 100 | $ 11.91 | |||
| 250 | $ 10.87 | |||
| 500 | $ 10.16 | |||
| 1000 | $ 9.57 | |||
Description
General part information
T 3528 Series
8 Position Circular Connector Plug, Female Sockets Solder Cup
