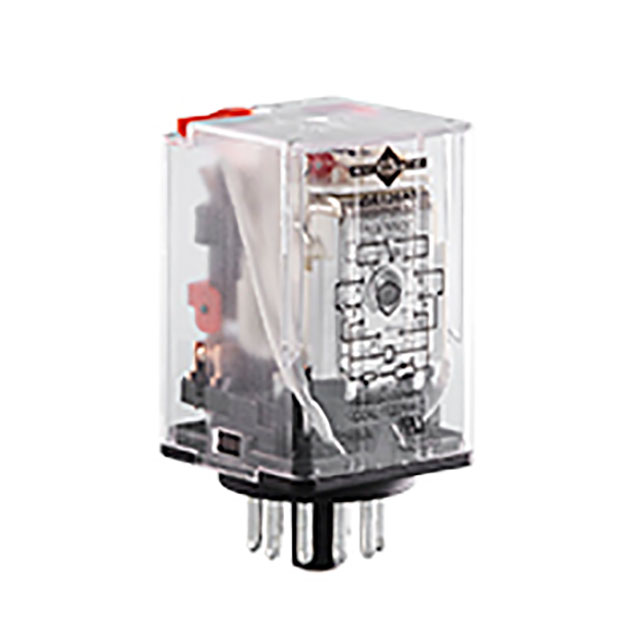

GR120A3

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE 3PDT 10A 120V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE 3PDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	GR120A3

Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	3PDT (3 Form C)
Contact Rating (Current)	10 A
Features	Test Button, Lighted Indicator
Mounting Type	Socketable
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In, 11 Pin (Octal)

Part	Contact Form	Switching Voltage [Max]	Coil Type	Features	Relay Type	Termination Style	Coil Voltage	Contact Rating (Current)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Macromatic Industrial Controls GR120A3	3PDT (3 Form C)	30 VDC 250 VAC	Non Latching	Lighted Indicator Test Button	General Purpose	Plug In 11 Pin (Octal)	120 VAC	10 A	Socketable	-40 °C	55 °C
Macromatic Industrial Controls GR120A2	DPDT (2 Form C)	30 VDC 250 VAC	Non Latching	Lighted Indicator Test Button	General Purpose	Plug In 8 Pin (Octal)	120 VAC	10 A	Socketable	-40 °C	55 °C
Macromatic Industrial Controls GR120A2T	DPDT (2 Form C)	30 VDC 250 VAC	Non Latching	Lighted Indicator	General Purpose	Plug In 8 Pin (Octal)	120 VAC	10 A	Socketable	-40 °C	55 °C
Macromatic Industrial Controls GR120A3T	3PDT (3 Form C)	30 VDC 250 VAC	Non Latching	Lighted Indicator	General Purpose	Plug In 11 Pin (Octal)	120 VAC	10 A	Socketable	-40 °C	55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.29

General part information

General Purpose Relay 3PDT (3 Form C) 120VAC Coil Socketable
