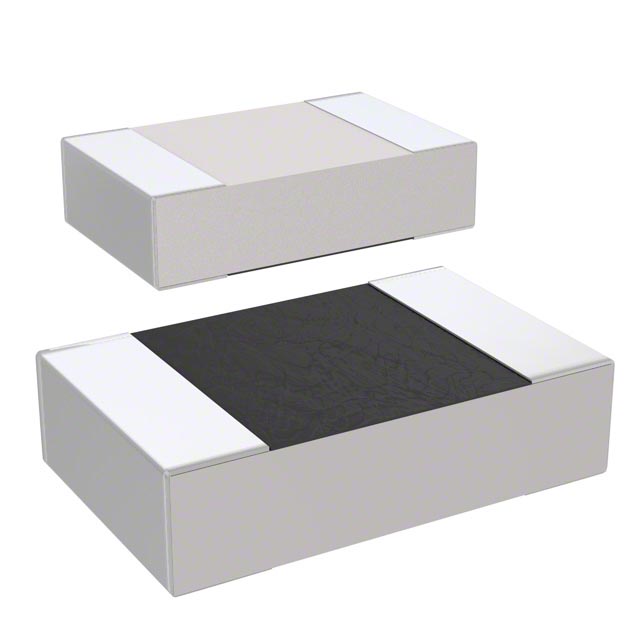

M55342E06B1B00R

Unknown

TT Electronics/IRC

RES SMD 1K OHM 0.1% 0.15W 0805

Search across all available documentation for this part.

Unknown

TT Electronics/IRC

RES SMD 1K OHM 0.1% 0.15W 0805

Technical Specifications

Parameters and characteristics for this part

Part	Failure Rate	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Number of Terminations	Power (Watts)	Power (Watts)	Composition	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TT Electronics/IRC M55342E12B4B70R	R (0.01%)	0.1 %	0.6 mm	0.024 in	0603 (1608 Metric)	2	0.1 W	0.1 W	Thin Film	25 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in	4.7 kOhms	-55 °C	150 °C
TT Electronics/IRC M55342E06B1B00R	R (0.01%)	0.1 %			0805	2	150 mW		Thin Film	25 ppm/°C	1.27 mm	0.081 in	2.06 mm	0.05 "	1000 Ohms	-55 °C	150 °C	0805	0.66 mm	0.026 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 kOhms ±0.1% 0.15W Chip Resistor 0805 (2012 Metric) Military, Moisture Resistant Thin Film
