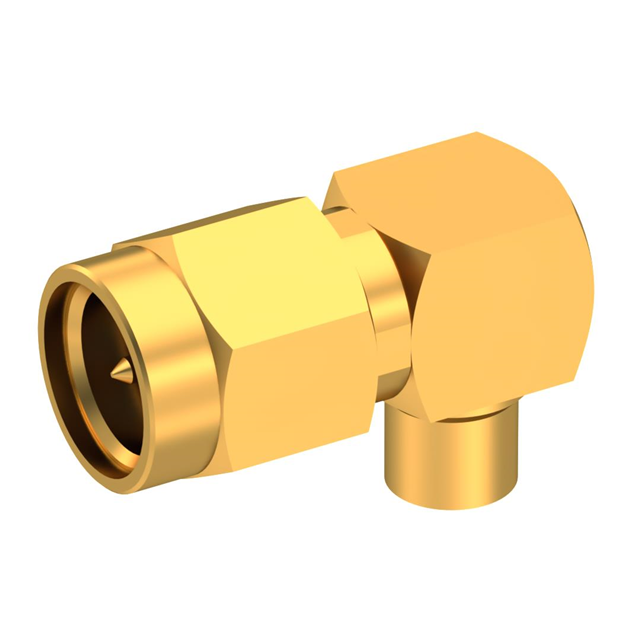

9443-1563-009

Active

Radiall USA, Inc.

SMA M RA NA SD .141

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA M RA NA SD .141

Technical Specifications

Parameters and characteristics for this part

Specification	9443-1563-009

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Impedance	Housing Color	Connector Type	Center Contact Material	Shield Termination	Connector Style	Number of Ports	Dielectric Material	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Material	Voltage Rating	Frequency - Max [Max]	Body Finish	Center Contact Plating	Mounting Type	Cable Group
Radiall USA, Inc. 9443-1563-009	50 Ohms	Gold	Male Pin Plug	Beryllium Copper	Solder	SMA	1	Polytetrafluoroethylene (PTFE)	Solder	-65 ░C	105 ░C	500	Stainless Steel	500 V	18 GHz	Gold	Gold	Free Hanging (In-Line) Right Angle
Radiall USA, Inc. 9443-1563-010	50 Ohms	Gold	Male Pin Plug	Beryllium Copper	Solder	SMA	1	Polytetrafluoroethylene (PTFE)	Solder	-65 ░C	105 ░C	500	Stainless Steel	350 V	18 GHz	Gold	Gold	Free Hanging (In-Line) Right Angle	RG-405 (.085" Semi Rigid)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
