UCLAMP5612T.TNT

Active

Semtech Corporation

3-LINE 5.6V/12V 10A (8/20US) SLP1508N5T

Search across all available documentation for this part.

Active

Semtech Corporation

3-LINE 5.6V/12V 10A (8/20US) SLP1508N5T

Technical Specifications

Parameters and characteristics for this part

Specification	UCLAMP5612T.TNT

Applications	General Purpose
Capacitance @ Frequency	90 pF
Current - Peak Pulse (10/1000µs)	10 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C

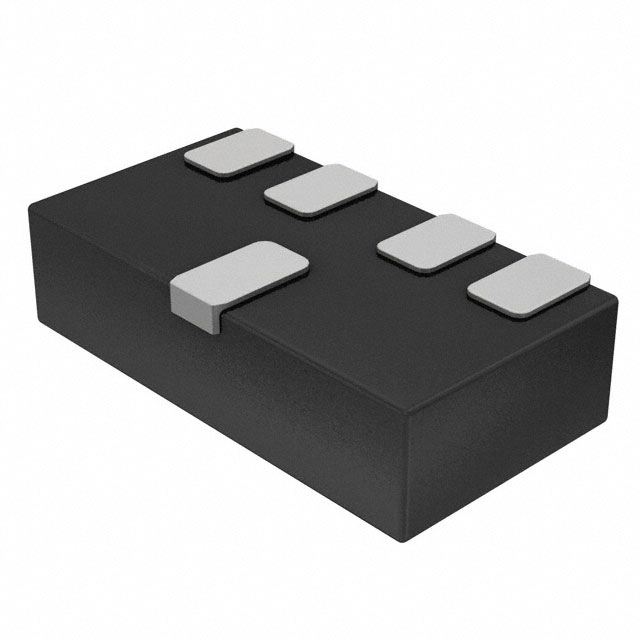

Package / Case	5-XFDFN
Power - Peak Pulse	125 W
Power Line Protection	False
Supplier Device Package	SLP1508N5T
Type	Zener
Unidirectional Channels	2
Voltage - Breakdown (Min) [Min]	6.5 V
Voltage - Clamping (Max) @ Ipp [Max]	12.5 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Package / Case	Unidirectional Channels	Operating Temperature [Max]	Operating Temperature [Min]	Power Line Protection	Power - Peak Pulse	Supplier Device Package	Mounting Type	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Type	Applications
Semtech Corporation UCLAMP5612T.TNT	10 A	5 V	5-XFDFN	2	125 ¯C	-55 °C		125 W	SLP1508N5T	Surface Mount	90 pF	12.5 V	6.5 V	Zener	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.38
Newark	Each	10000	$ 0.39

General part information

12.5V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SLP1508N5T
