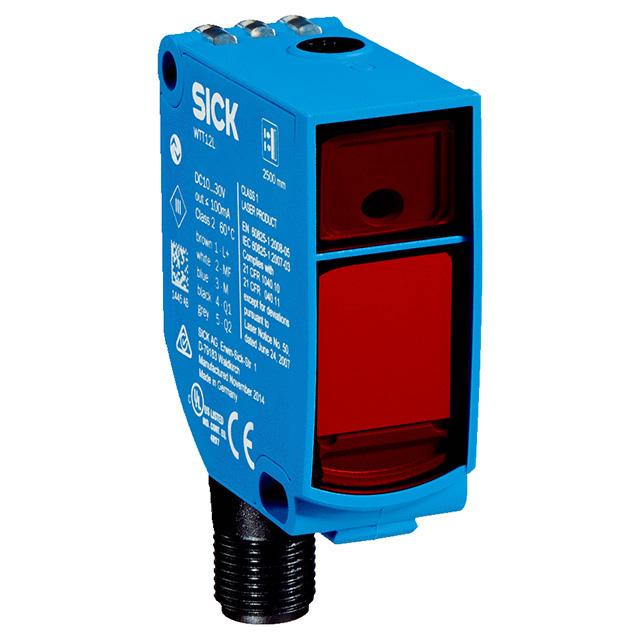

1072611

Active

SICK, Inc.

SENSOR 3.8M NPN/PNP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1072611

Active

SICK, Inc.

SENSOR 3.8M NPN/PNP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1072611

Adjustment Type	Adjustable, 4-Turn Potentiometer
Connection Method	Connector, 5POS, M12
Ingress Protection	IP67
Light Source	658 nm
Light Source	Red Laser Diode
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-35 °C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Sensing Distance [Max]	149.606 "
Sensing Distance [Max]	3.8 m
Sensing Distance [Min]	100 mm
Sensing Distance [Min]	3.937 "
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

WTT12L Series

Part	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Adjustment Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Sensing Method	Light Source	Light Source	Cable Length	Cable Length	Connection Method	Output Configuration	Ingress Protection
SICK, Inc. 1072656	70.866 in	1.8 m	1.969 "	5 cm	Adjustable	30 VDC	10 VDC	50 °C	-35 °C	50 µs	Proximity	658 nm	Red Laser Diode	118.1 in	3000 mm	Cable with Connector	NPN/PNP	IP67
SICK, Inc. 1072636	70.866 in	1.8 m	1.969 "	5 cm	Adjustable	30 VDC	10 VDC	50 °C	-35 °C	50 µs	Proximity	658 nm	Red Laser Diode			Connector M12	NPN/PNP	IP67
SICK, Inc. WTT12L-B1563	149.606 "	3.8 m	1.969 "	5 cm	Adjustable	30 VDC	10 VDC	50 °C	-35 °C		Proximity	658 nm	Red Laser Diode	78.74 in	2 m	Cable	NPN/PNP	IP67
SICK, Inc. 1072631	149.606 "	3.8 m	1.969 "	5 cm	Adjustable 4-Turn Potentiometer	30 VDC	10 VDC	50 °C	-35 °C		Proximity	658 nm	Red Laser Diode	118.1 in	3000 mm	Cable with Connector	NPN/PNP	IP67
SICK, Inc. 1072622	149.606 "	3.8 m	1.969 "	5 cm	Adjustable 4-Turn Potentiometer	30 VDC	10 VDC	50 °C	-35 °C		Proximity	658 nm	Red Laser Diode	118.1 in	3000 mm	Cable with Connector	NPN/PNP	IP67
SICK, Inc. 1072651	149.606 "	3.8 m	1.969 "	5 cm	Adjustable	30 VDC	10 VDC	50 °C	-35 °C		Proximity	658 nm	Red Laser Diode	78.74 in	2 m	Cable	NPN/PNP	IP67
SICK, Inc. 1072614	149.606 "	3.8 m	1.969 "	5 cm	Adjustable 4-Turn Potentiometer	30 VDC	10 VDC	50 °C	-35 °C		Proximity	658 nm	Red Laser Diode	118.1 in	3000 mm	Cable with Connector	NPN/PNP	IP67
SICK, Inc. 1072611	149.606 "	3.8 m	3.937 "	100 mm	Adjustable 4-Turn Potentiometer	30 VDC	10 VDC	50 °C	-35 °C			658 nm	Red Laser Diode			5POS Connector M12	Dark-ON/Light-ON NPN/PNP Selectable	IP67
SICK, Inc. 1072628	149.606 "	3.8 m	1.969 "	5 cm	Adjustable 4-Turn Potentiometer	30 VDC	10 VDC	50 °C	-35 °C		Proximity	658 nm	Red Laser Diode			Connector M12	NPN/PNP	IP67
SICK, Inc. 1072608	149.606 "	3.8 m	1.969 "	5 cm	Adjustable 4-Turn Potentiometer	30 VDC	10 VDC	50 °C	-35 °C		Proximity	658 nm	Red Laser Diode	78.74 in	2 m	Cable	NPN/PNP	IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 461.71
		5	$ 440.00

Description

General part information

WTT12L Series

Optical Sensor 3.937" ~ 149.606" (100mm ~ 3.8m) NPN/PNP - Dark-ON/Light-ON - Selectable
