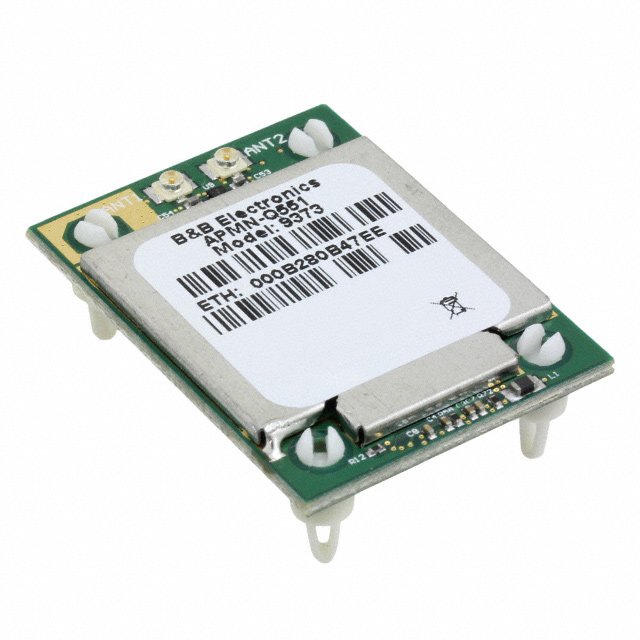

BB-APMN-Q551
ObsoleteAdvantech Corp
SECURE, RUGGED DUAL BAND (2.4/5 GHZ) ACCESS POINT/CLIENT/ROUTER-EMBEDDED OEM BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BB-APMN-Q551
ObsoleteAdvantech Corp
SECURE, RUGGED DUAL BAND (2.4/5 GHZ) ACCESS POINT/CLIENT/ROUTER-EMBEDDED OEM BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-APMN-Q551 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 200 mA |
| Current - Transmitting | 370 mA |
| Data Rate | 65 Mbps |
| Frequency | 5 GHz, 2.4 GHz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 17 dBm |
| Protocol | 802.11a/b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -92 dBm |
| Serial Interfaces | UART, SPI |
| Utilized IC / Part | CC2530 |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 119.70 | |
Description
General part information
BB-APMN Series
WiFi 802.11a/b/g/n Transceiver Module 2.4GHz, 5GHz Antenna Not Included, U.FL Chassis Mount
Documents
Technical documentation and resources
