HPP815G537
ActiveTE Connectivity Measurement Specialties

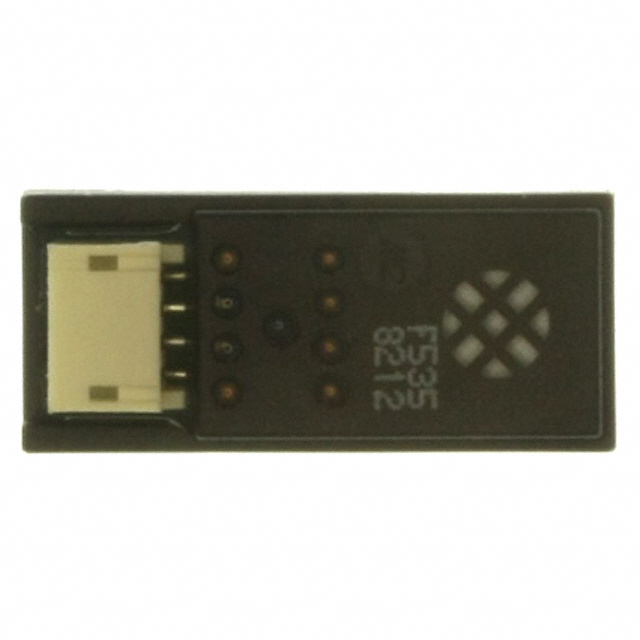

VOUT RH/ TEMP MODULE, SIDE CONN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HPP815G537
ActiveTE Connectivity Measurement Specialties
VOUT RH/ TEMP MODULE, SIDE CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HPP815G537 |
|---|---|
| Accuracy | 3 % RH |
| Humidity Range [Max] | 100 % RH |
| Humidity Range [Min] | 0 % RH |
| Mounting Type | User Defined |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 2.48 V |
| Output Type | Analog Voltage |
| Response Time | 5 s |
| Sensitivity | 26 mV/%RH |
| Sensor Type | Temperature, Humidity |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 780 | $ 7.47 | |
Description
General part information
HPP815 Series
Humidity, Temperature 0 ~ 100% RH Analog Voltage ±3% RH 5 s User Defined
