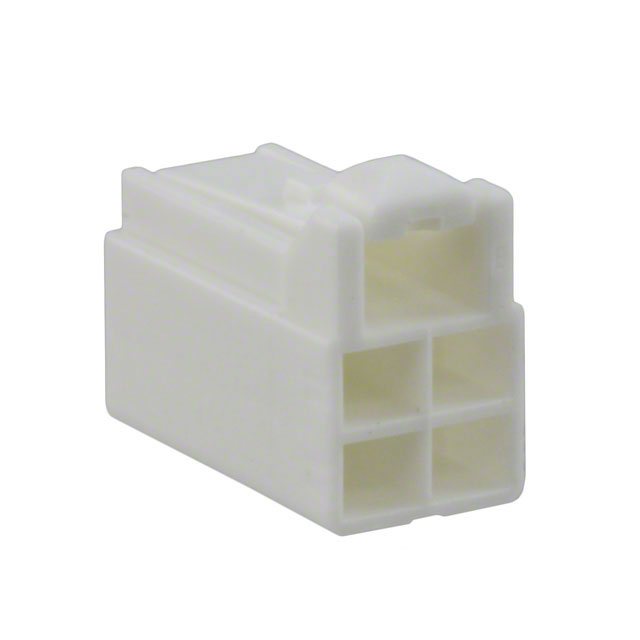

DF62C-4S-2.2C

Active

Hirose Electric USA, Inc.

CONN SOCKET HSG 4POS 2.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF62 Series Catalog +1

DF62C-4S-2.2C

Active

Hirose Electric USA, Inc.

CONN SOCKET HSG 4POS 2.20MM

Deep-Dive with AI

DocumentsDatasheet DF62 Series Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF62C-4S-2.2C

Color	White
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

DF62C Series

Part	Connector Type	Note	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Contact Type	Mounting Type	Number of Rows	Fastening Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Termination	Color
Hirose Electric USA, Inc. DF62C-4S-2.2C(18)	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)	2	Latch Lock	0.087 in	2.2 mm	4	Crimp	Red
Hirose Electric USA, Inc. DF62C-6S-2.2C	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)	2	Latch Lock	0.087 in	2.2 mm	6	Crimp	White
Hirose Electric USA, Inc. DF62C-13S-2.2C(11)	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)		Latch Lock	0.087 in	2.2 mm	13	Crimp	Black
Hirose Electric USA, Inc. DF62C-3S-2.2C	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)	2	Latch Lock	0.087 in	2.2 mm		Crimp	White
Hirose Electric USA, Inc. DF62C-24S-2.2C(11)	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)	5	Latch Lock	0.087 in	2.2 mm	24	Crimp	Black
Hirose Electric USA, Inc. DF62C-3S-2.2C(11)	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)	2	Latch Lock	0.087 in	2.2 mm		Crimp	Black
Hirose Electric USA, Inc. DF62C-4S-2.2C	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)	2	Latch Lock	0.087 in	2.2 mm	4	Crimp	White
Hirose Electric USA, Inc. DF62C-3S-2.2C(18)	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)	2	Latch Lock	0.087 in	2.2 mm		Crimp	Red
Hirose Electric USA, Inc. DF62C-13S-2.2C	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)		Latch Lock	0.087 in	2.2 mm	13	Crimp	White
Hirose Electric USA, Inc. DF62C-6S-2.2C(18)	Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2 mm	0.079 in	Female Socket	Free Hanging (In-Line)	2	Latch Lock	0.087 in	2.2 mm	6	Crimp	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.62
		10	$ 0.47
		25	$ 0.43
		50	$ 0.39
		100	$ 0.36
		250	$ 0.33
		500	$ 0.30
		1000	$ 0.28
		2500	$ 0.26

Description

General part information

DF62C Series

4 Rectangular Connectors - Housings Socket White 0.087" (2.20mm)
