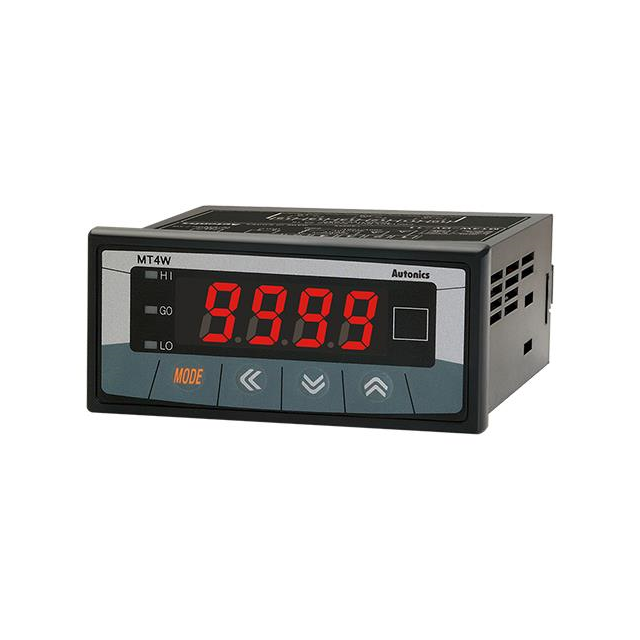

MT4W-DV-42

Active

AUTONICS

DC VOLT 0-500V 3 NPN 100-240VAC

Search across all available documentation for this part.

Active

AUTONICS

DC VOLT 0-500V 3 NPN 100-240VAC

Technical Specifications

Parameters and characteristics for this part

Specification	MT4W-DV-42

Display Characters - Height [z]	14.2 mm
Display Characters - Height [z]	0.559 in
Display Type	LED - Red Characters
Measuring Range [Max]	500 V
Measuring Range [Min]	0 V
Measuring Type	Voltage
Number of Characters Per Row	4
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Screw Terminal
Type	Voltmeter
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Measuring Range [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Measuring Type	Termination Style	Output Type
AUTONICS MT4W-DV-42	500 V	-10 °C	50 °C	100 VAC	240 VAC	LED - Red Characters	4	14.2 mm	0.559 in	92 mm	45 mm	Voltmeter	Voltage	Screw Terminal
AUTONICS MT4W-DV-41	500 V			100 VAC	240 VAC	LED - Red Characters	4	14.2 mm	0.56 in	92 mm	45 mm	Voltmeter	Voltage	Screw Terminal	Relay (3)
AUTONICS MT4W-DV-44	500 V			100 VAC	240 VAC	LED - Red Characters	4	14.2 mm	0.56 in	92 mm	45 mm	Voltmeter	Voltage	Screw Terminal	PV Output Solid State (3)
AUTONICS MT4W-DV-4N	500 V			100 VAC	240 VAC	LED - Red Characters	4	14.2 mm	0.56 in	92 mm	45 mm	Voltmeter	Voltage	Screw Terminal
AUTONICS MT4W-DV-1N	500 V			12 V	24 V	LED - Red Characters	4	14.2 mm	0.56 in	92 mm	45 mm	Voltmeter	Voltage	Screw Terminal
AUTONICS MT4W-DV-10	500 V			12 V	24 V	LED - Red Characters	4	14.2 mm	0.56 in	92 mm	45 mm	Voltmeter	Voltage	Screw Terminal	PV Output Relay (3)
AUTONICS MT4W-DV-40	500 V			100 VAC	240 VAC	LED - Red Characters	4	14.2 mm	0.56 in	92 mm	45 mm	Voltmeter	Voltage	Screw Terminal	PV Output Relay (3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 216.00

General part information

Voltmeter LED - Red Characters Display Panel Mount
