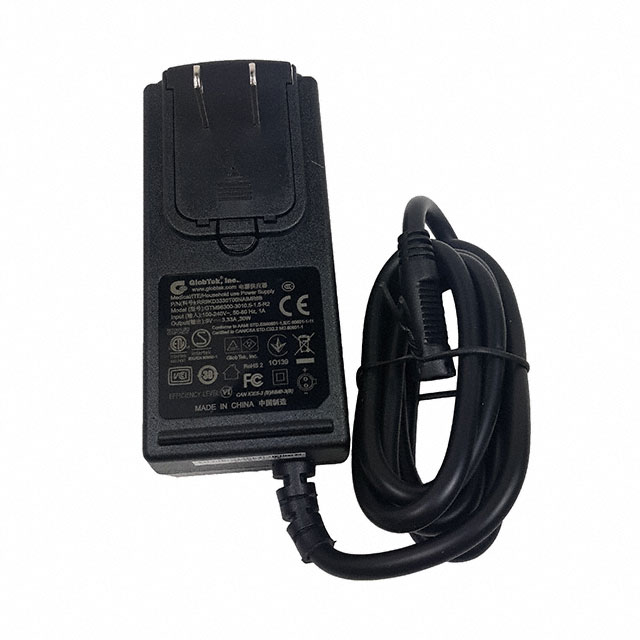

RR9KD3330T00NAIMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADAPT 9V 30W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADAPT 9V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9KD3330T00NAIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	S-Mark, UL, FCC, LPS, VCCI, ETL, CCC, RCM, EAC, CE, CB, UKRSepro, PSE, cETLus
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	3.33 A
Efficiency	Level VI
Form	Desktop, Wall Mount
Input Connector	IEC 320-C8, Multi-Blade (Single Blade Included)
Input Type	Multi-Blade (Single Blade Included), Cord (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	30 W
Region Utilized	International
Size / Dimension [x]	4 in
Size / Dimension [x]	101.7 mm
Size / Dimension [y]	46.5 mm
Size / Dimension [y]	1.83 in
Size / Dimension [z]	38.2 mm
Size / Dimension [z]	1.5 "
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V

Part	Input Connector	Efficiency	Standard Number	Form	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Current - Output (Max) [Max]	Applications	Input Type	Power (Watts)	No Load Power Consumption [Max]	Region Utilized	Output Connector
GlobTek, Inc. RR9KD3330T00NAIMR6B	IEC 320-C8 Multi-Blade (Single Blade Included)	Level VI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Desktop Wall Mount	38.2 mm	4 in	46.5 mm	1.83 in	101.7 mm	1.5 "	9 V	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL VCCI	-20 C	40 °C	90 VAC	264 VAC	1.2 m	47.2 in	3.33 A	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately) Multi-Blade (Single Blade Included)	30 W	75 mW	International	1.3mm x 3.5mm Barrel Plug Kit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9V 30 W AC/DC External Desktop, Wall Mount (Class II) Adapter Cord (Sold Separately), Multi-Blade (Single Blade Included) Input
