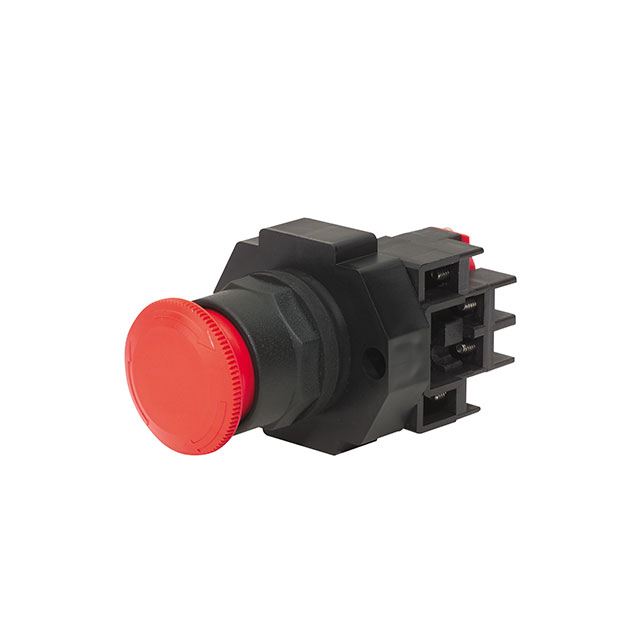

HPTR-TMCRD-CBFSG/CBFSG

Active

c3controls

SWITCH ESTOP TWIST RESET 10A 72V

Search across all available documentation for this part.

Active

c3controls

SWITCH ESTOP TWIST RESET 10A 72V

Technical Specifications

Parameters and characteristics for this part

Specification	HPTR-TMCRD-CBFSG/CBFSG

Circuit	DPST-NO/NC x 2
Current Rating (Amps)	10 A, 5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Reset Operation	Twist
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

Part	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Termination Style	Switch Function	Reset Operation	Voltage Rating - DC	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
c3controls HPTR-TMCRD-CBFSG/CBFSG	DPST-NO/NC x 2	30 mm	72 V	Screw Terminal	Off-On On-Off	Twist	28 V	IP65 - Dust Tight Water Resistant	Panel Mount Rear	-40 °C	55 °C	5 A 10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 172.74

General part information

SWITCH ESTOP TWIST RESET 10A 72V
