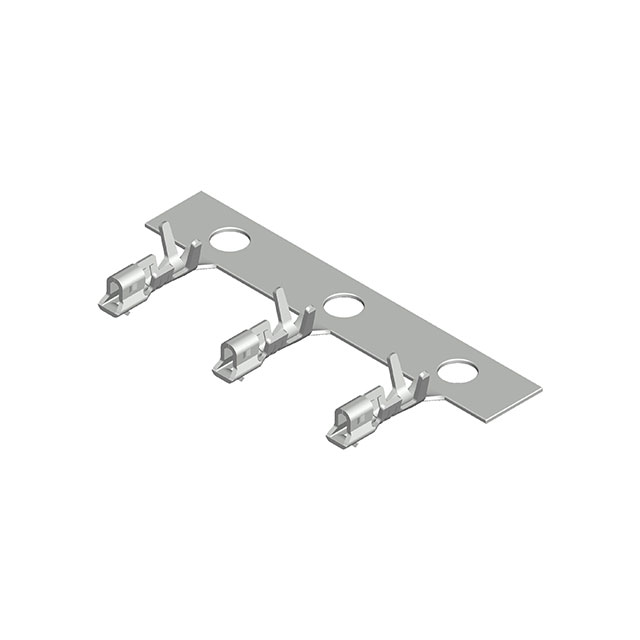

CI15T011PE0
ActiveCvilux USA
1.50MM(.059) WIRE TO BOARD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
CI15T011PE0
ActiveCvilux USA
1.50MM(.059) WIRE TO BOARD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CI15T011PE0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 32 AWG |
| Wire Gauge [Min] | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.03 | |||
| 25 | $ 0.02 | |||
| 50 | $ 0.02 | |||
| 100 | $ 0.02 | |||
| 250 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.01 | |||
| 2500 | $ 0.01 | |||
| Tape & Reel (TR) | 15000 | $ 0.01 | ||
| 30000 | $ 0.01 | |||
| 75000 | $ 0.01 | |||
Description
General part information
CI15T011 Series
Socket Contact Tin 26-32 AWG Crimp Stamped
Documents
Technical documentation and resources
No documents available
