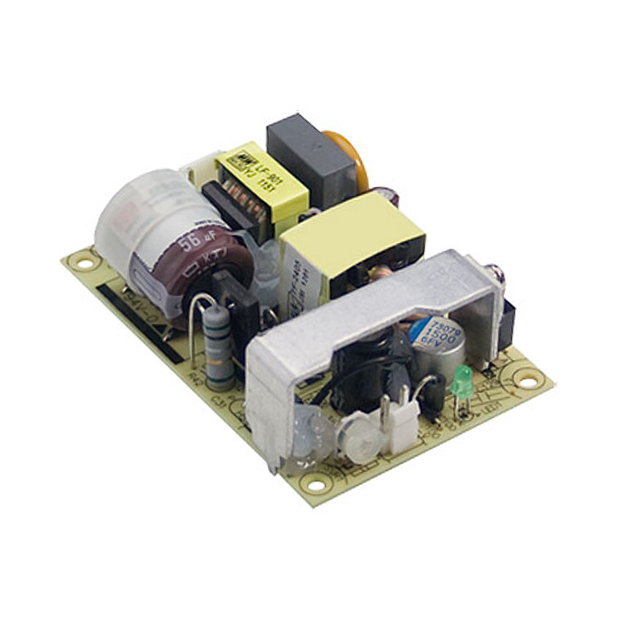

EPS-25-3.3
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 3.3V 17W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPS-25-3.3
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 3.3V 17W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPS-25-3.3 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 5 A |
| Efficiency | 79 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 17 W |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [x] | 3 " |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 24 mm |
| Size / Dimension [z] | 0.94 in |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.15 | |
| 5 | $ 12.39 | |||
| 10 | $ 12.07 | |||
| 25 | $ 11.67 | |||
| 40 | $ 11.47 | |||
| 80 | $ 11.18 | |||
| 230 | $ 10.75 | |||
| 440 | $ 10.49 | |||
Description
General part information
EPS-25 Series
Open Frame AC DC Converters 1 Output 3.3V 85 ~ 264 VAC, 120 ~ 370 VDC Input
