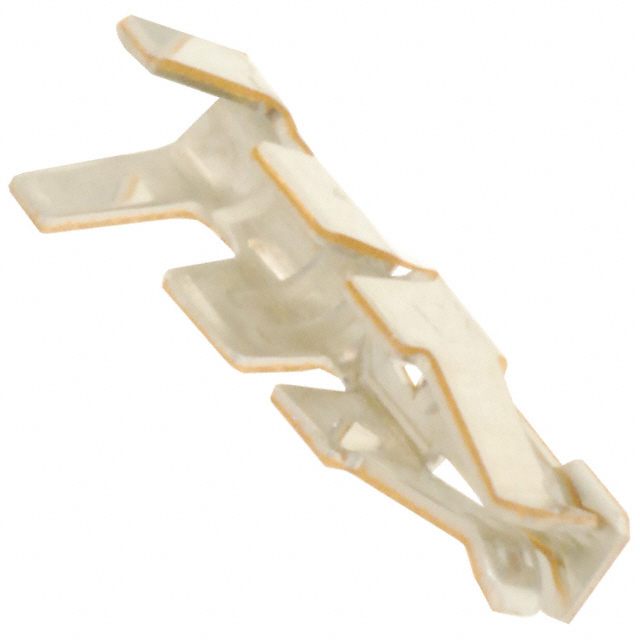

SPHD-001T-P0.5
ActiveJST Sales America Inc.
CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
SPHD-001T-P0.5
ActiveJST Sales America Inc.
CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPHD-001T-P0.5 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.03 | |
| Tape & Reel (TR) | 8000 | $ 0.02 | ||
| 16000 | $ 0.02 | |||
| 24000 | $ 0.02 | |||
| 56000 | $ 0.01 | |||
Description
General part information
SPHD-001 Series
Socket Contact Tin 22-26 AWG Crimp
