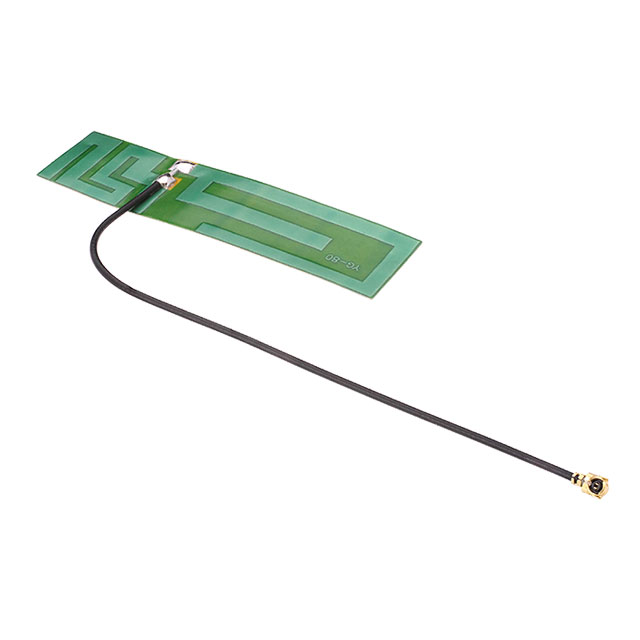

ANT-LPC-FPC-100
ActiveTE Connectivity Linx
RF ANT LTE CBRS FLEX ADHES UFL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-LPC-FPC-100
ActiveTE Connectivity Linx
RF ANT LTE CBRS FLEX ADHES UFL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-LPC-FPC-100 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | General Purpose |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 2.44 GHz, 1.58 GHz, 2.59 GHz, 3.55 GHz, 750 MHz, 1.96 GHz, 876 MHz, 2.35 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.4 GHz, 803 MHz, 1.609 GHz, 3.8 GHz, 960 MHz, 2.485 GHz, 2.2 GHz, 2.69 GHz |
| Frequency Range [Min] | 1.553 GHz, 698 MHz, 1.71 GHz, 3.3 GHz, 791 MHz, 2.496 GHz, 2.3 GHz, 2.4 GHz |
| Height (Max) [Max] | 0.01 in |
| Height (Max) [Max] | 0.2 mm |
| Mounting Type | Adhesive |
| Number of Bands | 8 |
| Power - Max [Max] | 2 W |
| Return Loss | -11.7 dB, -3.6 dB, -3.7 dB, -5.8 dB, -9.5 dB, -5.1 dB |
| RF Family/Standard | Cellular, Navigation |
| Termination | IPEX MHF1 (U.FL) |
| VSWR | 3.5, 2, 4.8, 8.2, 3.1, 1.7, 4.9, 2.7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.04 | |
Description
General part information
ANT-LPC Series
RF ANTENNA General Purpose Flat Patch IPEX MHF1 (U.FL) Adhesive
