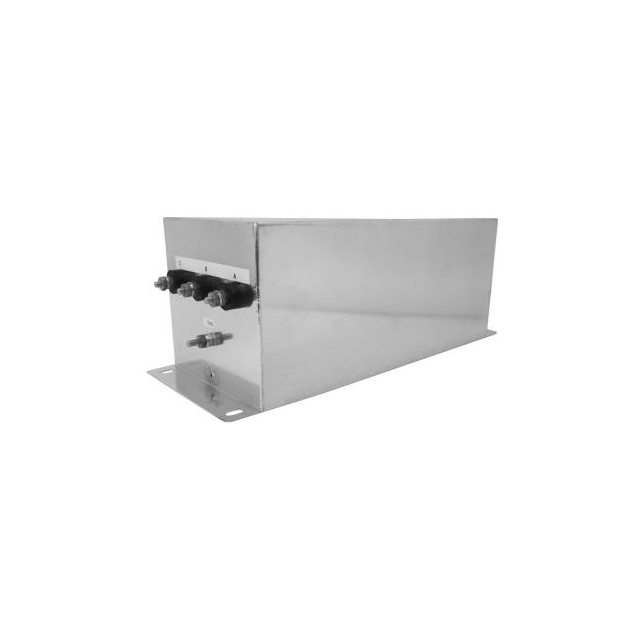

3H100D
ActiveAstrodyne TDI
LINE FILTER 480VAC 100A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3H100D
ActiveAstrodyne TDI
LINE FILTER 480VAC 100A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3H100D |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, cURus, SEMKO, ENEC, CE |
| Configuration | Two Stage |
| Current | 100 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Termination Style | Threaded Post (5/16-18) |
| Voltage - Rated AC | 480 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1366.46 | |
Description
General part information
3H100 Series
Three Phase (Delta) EMC/EMI Line Filter 100 A 480V 50/60Hz Two Stage Threaded Post (5/16-18)
Documents
Technical documentation and resources
