15-006563

Active

Amphenol CONEC

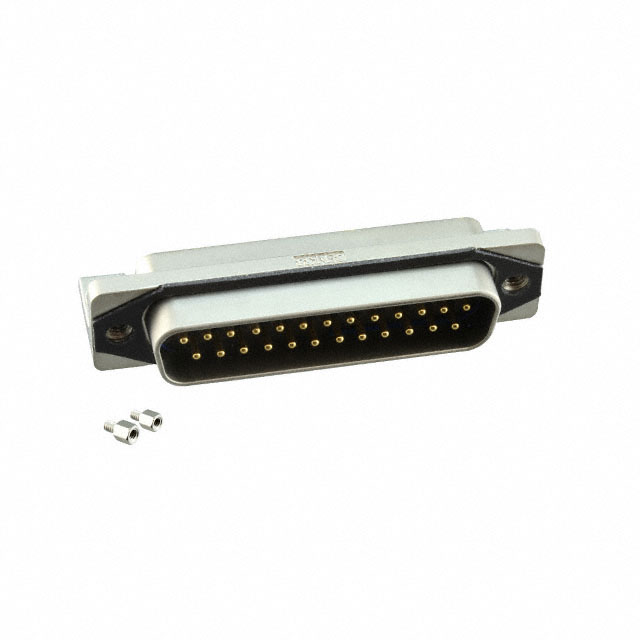

CONN D-SUB PLUG 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

15-006563

Active

Amphenol CONEC

CONN D-SUB PLUG 25POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15-006563

Backset Spacing	0.232 in
Backset Spacing	5.89 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets, Gasket
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Zinc Die Cast
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	125 VDC

15-0065 Series

Part	Voltage Rating	Features	Contact Finish Thickness	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current Rating (Amps)	Ingress Protection	Shell Material, Finish	Contact Finish	Contact Type	Mounting Type	Number of Positions	Material Flammability Rating	Connector Style	Dielectric Material	Number of Rows	Contact Material	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Backset Spacing	Backset Spacing	Shell Size, Connector Layout
Amphenol CONEC 15-006543	125 VDC	Board Lock Gasket Mounting Brackets	Flash	Board Side (4-40) Mating Side Female Screwlock (4-40)	-40 °C	105 ░C	Male Pins Plug	5 A	IP67 - Dust Tight Waterproof	Nickel Plated Zinc Die Cast	Gold	Signal	Board Edge Right Angle Through Hole	9	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	Solder	DE E	1	Black	0.232 in	5.89 mm
Amphenol CONEC 15-006513	125 VDC	Board Lock Gasket	Flash	Board Side (4-40) Mating Side Female Screwlock (4-40)	-40 °C	105 ░C	Receptacle Female Sockets	5 A	IP67 - Dust Tight Waterproof	Nickel Plated Zinc Die Cast	Gold	Signal	Panel Mount Through Hole		UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	Solder	B DB	3	Black
Amphenol CONEC 15-006563	125 VDC	Board Lock Gasket Mounting Brackets	Flash	Board Side (4-40) Mating Side Female Screwlock (4-40)	-40 °C	105 ░C	Male Pins Plug	5 A	IP67 - Dust Tight Waterproof	Nickel Plated Zinc Die Cast	Gold	Signal	Board Edge Right Angle Through Hole		UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	Solder	B DB	3	Black	0.232 in	5.89 mm
Amphenol CONEC 15-006593	125 VDC	Board Lock Gasket Mounting Brackets	Flash	Board Side (4-40) Mating Side Female Screwlock (4-40)	-40 °C	105 ░C	Receptacle Female Sockets	5 A	IP67 - Dust Tight Waterproof	Nickel Plated Zinc Die Cast	Gold	Signal	Board Edge Right Angle Through Hole	9	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	Solder	DE E	1	Black	0.328 "	8.34 mm
Amphenol CONEC 15-006553	125 VDC	Board Lock Gasket Mounting Brackets	Flash	Board Side (4-40) Mating Side Female Screwlock (4-40)	-40 °C	105 ░C	Male Pins Plug	5 A	IP67 - Dust Tight Waterproof	Nickel Plated Zinc Die Cast	Gold	Signal	Board Edge Right Angle Through Hole	15	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	Solder			Black	0.232 in	5.89 mm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.44
		10	$ 38.04
		30	$ 36.40
		50	$ 35.22
		100	$ 34.05
		250	$ 32.17

Description

General part information

15-0065 Series

25 Position D-Sub Plug, Male Pins Connector
