903-289P-51A2
ActiveAmphenol RF
CONN SMB PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
903-289P-51A2
ActiveAmphenol RF
CONN SMB PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 903-289P-51A2 |
|---|---|
| Body Finish | Gold |
| Body Material | Zinc Alloy |
| Cable Group | RG-316 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |

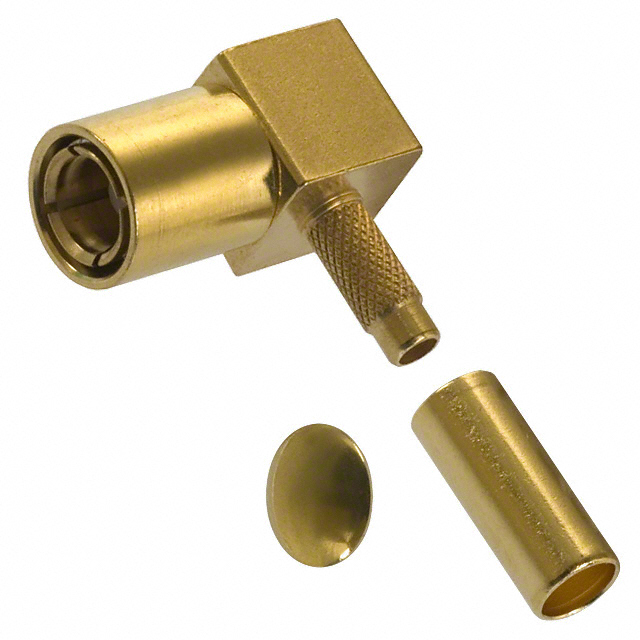

| Includes | 1 Connector, 1 Ferrule, 1 End Cap |
| Insertion Loss | 0.6 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.87 | |
| 10 | $ 7.48 | |||
| 25 | $ 6.34 | |||
| 50 | $ 6.14 | |||
| 100 | $ 5.72 | |||
| 300 | $ 5.56 | |||
| 500 | $ 5.43 | |||
| 1000 | $ 5.04 | |||
Description
General part information
903-289P Series
SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
Documents
Technical documentation and resources
No documents available
