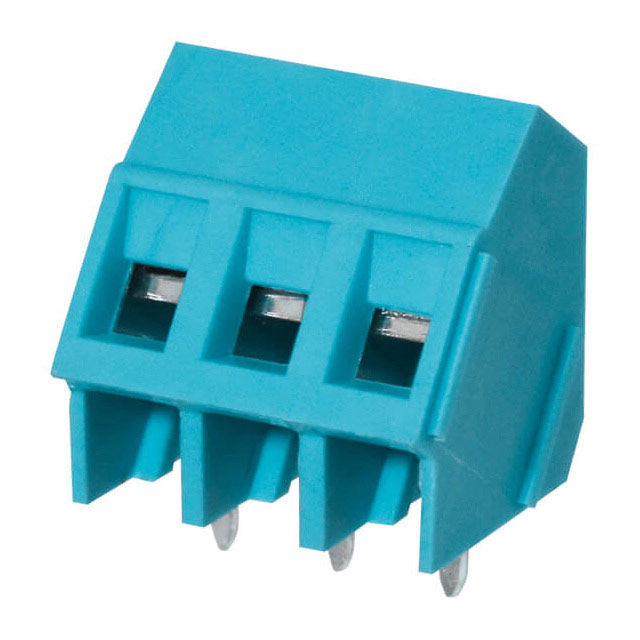

TB008A-508-03BE
ActiveCUI Devices
TERMINAL BLOCK, SCREW TYPE, 5.08
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB008A-508-03BE
ActiveCUI Devices
TERMINAL BLOCK, SCREW TYPE, 5.08
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB008A-508-03BE |
|---|---|
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
| Color | Blue |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 16 A |
| Features | Interlocking (Side) |
| Mating Orientation | 135 ° |
| Mating Orientation | 45 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 3 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M3 |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.88 | |
| 1 | $ 0.88 | |||
| 10 | $ 0.65 | |||
| 10 | $ 0.65 | |||
| 25 | $ 0.56 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.51 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.46 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.41 | |||
| 250 | $ 0.41 | |||
| 800 | $ 0.36 | |||
| 800 | $ 0.36 | |||
| 1600 | $ 0.34 | |||
| 1600 | $ 0.34 | |||
| 5600 | $ 0.31 | |||
| 5600 | $ 0.31 | |||
Description
General part information
TB008A Series
3 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
