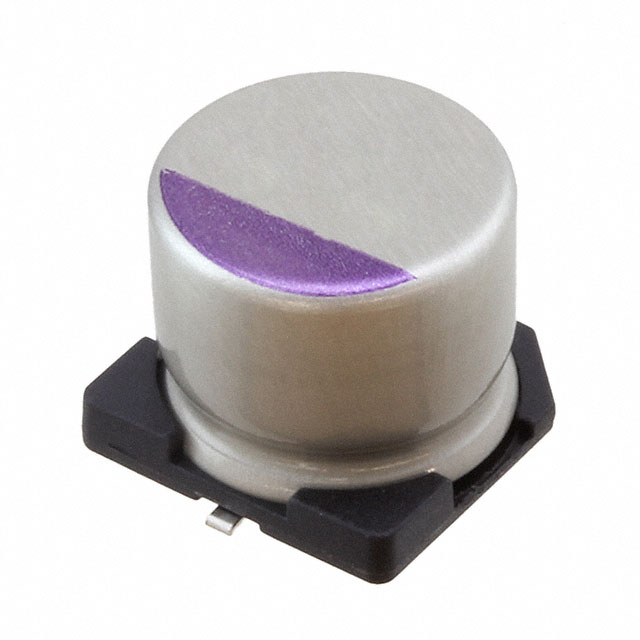

100SXV18MX - OS-CON,-SVQP-SERIES

100SXV18MX

Active
Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 18 ΜF, 100 V, RADIAL CAN - SMD, 0.04 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsConductive Poly Alum Solid Caps, Product GuideOS-CON™ Capacitors Product Catalog+3
100SXV18MX - OS-CON,-SVQP-SERIES

100SXV18MX

Active
Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 18 ΜF, 100 V, RADIAL CAN - SMD, 0.04 OHM

Deep-Dive with AI

DocumentsConductive Poly Alum Solid Caps, Product GuideOS-CON™ Capacitors Product Catalog+3

Technical Specifications

Parameters and characteristics for this part

Specification100SXV18MX
ApplicationsGeneral Purpose
Capacitance18 µF
ESR (Equivalent Series Resistance)40 mOhm
Height - Seated (Max) [Max] [z]12 mm
Height - Seated (Max) [Max] [z]0.472 "
Lifetime @ Temp.1000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
Ripple Current @ High Frequency2.35 A
Ripple Current @ Low Frequency117.5 mA
Size / Dimension [diameter]0.315 "
Size / Dimension [diameter]8 mm
Surface Mount Land Size [x]0.327 "
Surface Mount Land Size [x]8.3 mm
Surface Mount Land Size [y]8.3 mm
Surface Mount Land Size [y]0.327 in
Tolerance20 %
TypePolymer
Voltage - Rated100 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 3.08
10$ 2.37
50$ 2.17
100$ 1.80
Digi-Reel® 1$ 3.08
10$ 2.37
50$ 2.17
100$ 1.80
Tape & Reel (TR) 400$ 1.63
800$ 1.36
1200$ 1.27
2000$ 1.22
4000$ 1.18
NewarkEach (Supplied on Full Reel) 1$ 1.52
1000$ 1.43
2000$ 1.35
4000$ 1.22
6000$ 1.17
10000$ 1.13

Description

General part information

100SXV Series

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 18 ΜF, 100 V, RADIAL CAN - SMD, 0.04 OHM
