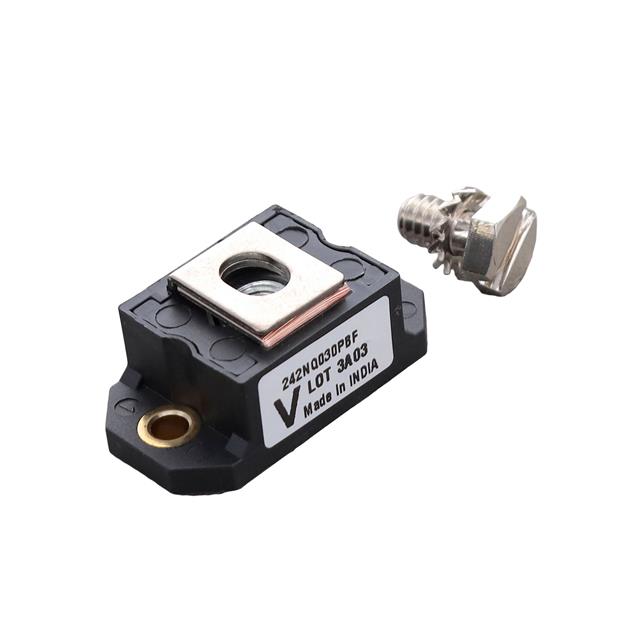

VS-242NQ030PBF

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 30V 240A D-67

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 30V 240A D-67

Technical Specifications

Parameters and characteristics for this part

Specification	VS-242NQ030PBF

Capacitance @ Vr, F	14800 pF
Current - Average Rectified (Io)	240 A
Current - Reverse Leakage @ Vr	20 mA
Mounting Type	Chassis Mount
Package / Case	D-67 HALF-PAK
Speed	200 mA, 500 ns
Supplier Device Package	D-67 HALF-PAK
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	540 mV

Part	Supplier Device Package	Speed	Mounting Type	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Capacitance @ Vr, F
Vishay General Semiconductor - Diodes Division VS-242NQ030PBF	D-67 HALF-PAK	200 mA 500 ns	Chassis Mount	Schottky	30 V	D-67 HALF-PAK	540 mV	20 mA	240 A	14800 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 240A Chassis Mount D-67 HALF-PAK
