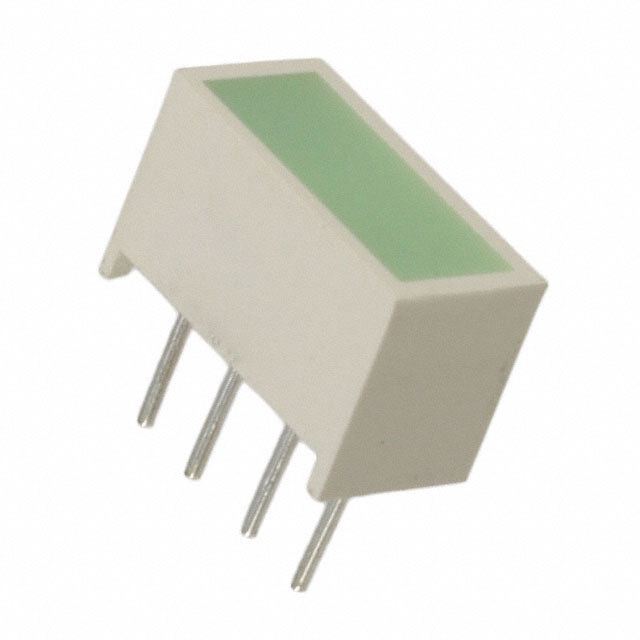

KB2500SGD
ActiveKingbright
SINGLE COLOR LED, SUPER BRIGHT GREEN, DIFFUSED GREEN, 8.89MM, ROHS COMPLIANT PACKAGE-4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KB2500SGD
ActiveKingbright
SINGLE COLOR LED, SUPER BRIGHT GREEN, DIFFUSED GREEN, 8.89MM, ROHS COMPLIANT PACKAGE-4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KB2500SGD |
|---|---|
| Color | Green |
| Configuration | Bar - Single, SIP |
| Current | 25 mA |
| Lens Size [x] | 8.89 mm |
| Lens Size [y] | 3.81 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 19 mcd |
| Mounting Type | Through Hole |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.02 | |
| 10 | $ 2.02 | |||
| 100 | $ 1.55 | |||
| 500 | $ 1.40 | |||
| 1000 | $ 1.21 | |||
| 2000 | $ 1.14 | |||
| 5000 | $ 1.11 | |||
Description
General part information
KB2500 Series
LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, Tinted 2.2V 25mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole
