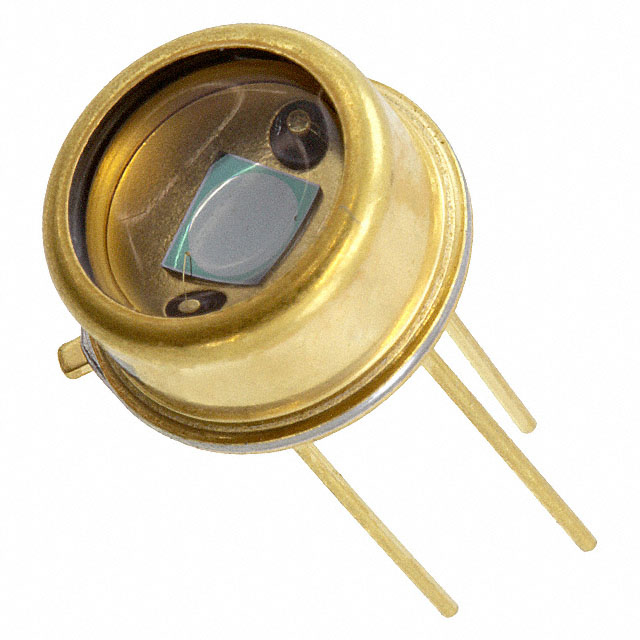

ODD-5WISOL

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO5

Search across all available documentation for this part.

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO5

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Spectral Range [Max] [custom]	Spectral Range [Min] [custom]	Color - Enhanced	Responsivity @ nm	Wavelength	Response Time	Mounting Type	Active Area	Current - Dark (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Spectral Range [Max] [x]	Spectral Range [Min] [x]
Opto Diode Corp ODD-5WISOL	60 V	1100 nm	300 nm	Red	0.4 A/W	940 nm	10 ns	Through Hole	5 mm²	1 nA	100 °C	-55 °C
Opto Diode Corp ODD-5W	60 V	1100 nm	300 nm	Red	0.4 A/W	940 nm	10 ns	Through Hole	5 mm²	1 nA	100 °C	-55 °C
Opto Diode Corp ODD-5WB	60 V			Blue	0.28 A/W	940 nm	10 ns	Through Hole	5 mm²	1 nA	100 °C	-55 °C	1100 nm	400 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 940nm 10ns
