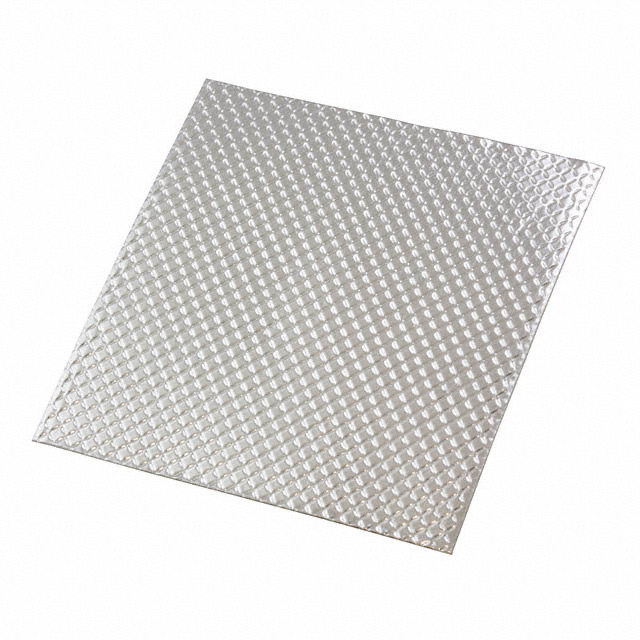

1267SQ-2(100)

Active

3M (TC)

RF EMI SHLDING SHEET 2"X2" 100PK

Search across all available documentation for this part.

Active

3M (TC)

RF EMI SHLDING SHEET 2"X2" 100PK

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Material	Shape	Type	Thickness - Overall [z]	Thickness - Overall [z]	Adhesive	Width [x]	Width	Width [x]	Width [y]	Width [y]
3M (TC) 3M 1267 1/2" X 3"-100	3 in	76.2 mm	Embossed Aluminum Foil	Rectangular	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided
3M (TC) 3M 1267 CIRCLE-1.5"-100			Embossed Aluminum Foil	Circular	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided	1.5 in	38.1 mm
3M (TC) 1267SQ-2(100)	2 in	50.8 mm	Embossed Aluminum Foil	Rectangular	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided	2 in		50.8 mm
3M (TC) 3M 1267 3/4" X 2"-100	2 in	50.8 mm	Embossed Aluminum Foil	Rectangular	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided	2 in		50.8 mm
3M (TC) 3M 1267 CIRCLE-0.75"-250			Embossed Aluminum Foil	Circular	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided				0.75 in	19.05 mm
3M (TC) 3M 1267 0.75"SQ-250	0.75 in	19.05 mm	Embossed Aluminum Foil	Square	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided				0.75 in	19.05 mm
3M (TC) 3M 1267 3/4" X 3"-100	3 in	76.2 mm	Embossed Aluminum Foil	Rectangular	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided				0.75 in	19.05 mm
3M (TC) 3M 1267 CIRCLE-1"-250			Embossed Aluminum Foil	Circular	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided	1 in	25.4 mm
3M (TC) 3M 1267 CIRCLE-0.5"-250			Embossed Aluminum Foil	Circular	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided
3M (TC) 3M 1267 1" X 4"-100	4 in	101.6 mm	Embossed Aluminum Foil	Rectangular	Shielding Sheet	0.13 mm	0.005 in	Non-Conductive Single Sided	1 in	25.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1267 Embossed Aluminum Foil Non-Conductive, Single Sided 2.000" (50.80mm) X 2.000" (50.80mm) X 0.005" (0.13mm)
