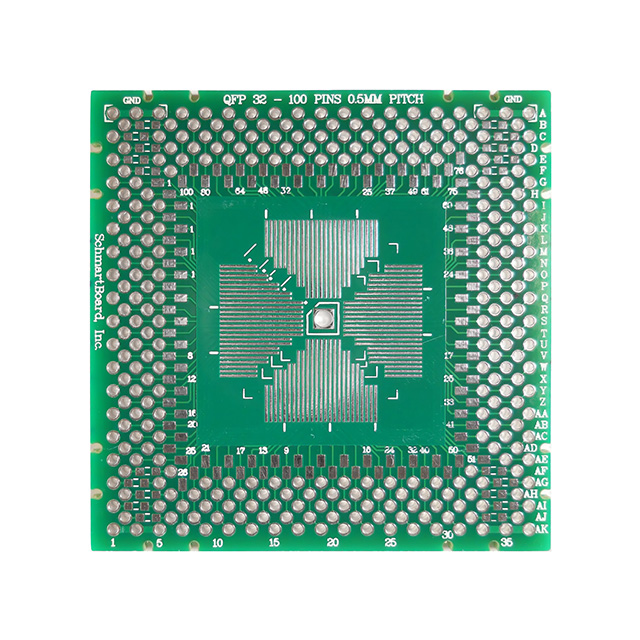

202-0011-01

Active

Schmartboard, Inc.

QFP, 32 - 100 PINS 0.5MM PITCH,

Search across all available documentation for this part.

Active

Schmartboard, Inc.

QFP, 32 - 100 PINS 0.5MM PITCH,

Technical Specifications

Parameters and characteristics for this part

Specification	202-0011-01

Number of Positions	100
Package Accepted	TQFP, PQFP, QFP
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

Part	Number of Positions	Package Accepted	Pitch [x]	Pitch [x]	Proto Board Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Schmartboard, Inc. 202-0011-01	100	PQFP QFP TQFP	0.5 mm	0.02 in	SMD to Plated Through Hole Board	2 in	50.8 mm	50.8 mm	2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

QFP, 32 - 100 PINS 0.5MM PITCH,

Technical documentation and resources
