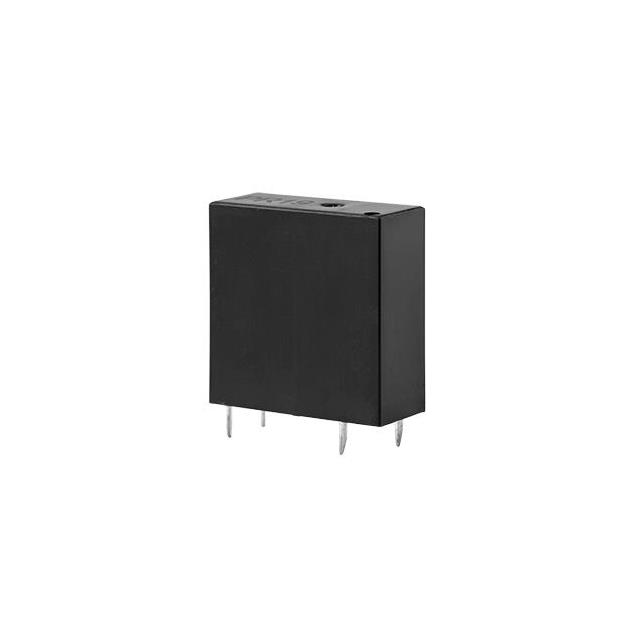

PR19-5V-250-1A
ActiveCUI Devices
RELAY GEN PURPOSE SPST 10A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR19-5V-250-1A
ActiveCUI Devices
RELAY GEN PURPOSE SPST 10A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR19-5V-250-1A |
|---|---|
| Coil Current | 50 mA |
| Coil Resistance | 100 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2500 VA, 300 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.50 | |
| 10 | $ 1.41 | |||
| 25 | $ 1.25 | |||
| 50 | $ 1.19 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.10 | |||
Description
General part information
PR19-5V Series
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
