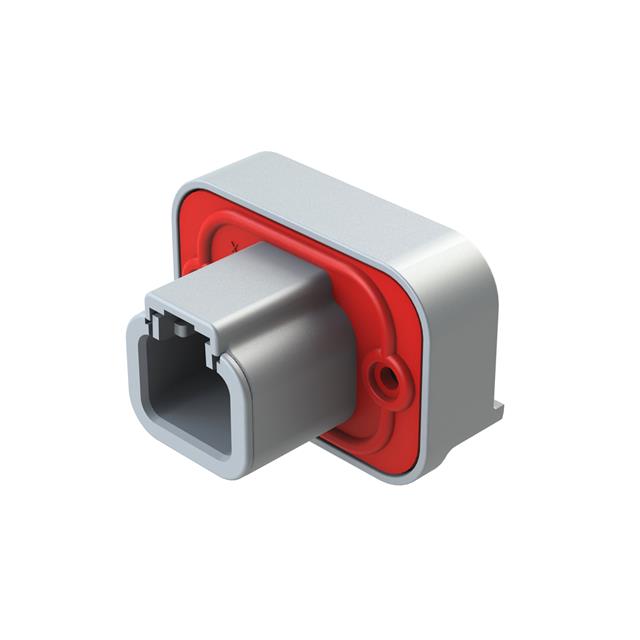

ATP15-2P-BM01GRY

Active

Amphenol Sine Systems Corp

2 POSITION STRAIGHT PCB FLANGE M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsATP Series BoardLock Family +1

ATP15-2P-BM01GRY

Active

Amphenol Sine Systems Corp

2 POSITION STRAIGHT PCB FLANGE M

Deep-Dive with AI

DocumentsATP Series BoardLock Family +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP15-2P-BM01GRY

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post [x]	0.181 in
Contact Length - Post [x]	4.6 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	25 A
Fastening Type	Latch Holder
Features	Sealed, Mounting Flange, Board Lock
Ingress Protection	IP67
Insulation Color	Gray
Insulation Height	1.339 "
Insulation Height	34 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	6.71 mm
Pitch - Mating	0.264 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

ATP15-2P Series

Part	Contact Finish - Post	Number of Positions	Style	Mounting Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Ingress Protection	Number of Rows	Number of Positions Loaded	Termination	Voltage Rating	Fastening Type	Contact Shape	Shrouding	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Type	Contact Material	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Features
Amphenol Sine Systems Corp ATP15-2P-BM01BLK	Gold	2	Board to Cable/Wire	Panel Mount Through Hole	Gold	-55 °C	125 °C	Receptacle	IP67	1	All	Solder	250 VDC	Latch Holder	Circular	Shrouded - 4 Wall	Thermoplastic	1.339 "	34 mm	Black	6.71 mm	0.264 in	Male Pin	Copper Alloy	25 A	0.181 in	4.6 mm	Board Lock Mounting Flange Sealed
Amphenol Sine Systems Corp ATP15-2P-BM03GRY	Tin	2	Board to Cable/Wire	Panel Mount Through Hole		-55 °C	125 °C	Receptacle	IP67	1	All	Solder	250 VDC	Latch Holder	Circular	Shrouded - 4 Wall	Thermoplastic	1.339 "	34 mm	Gray	6.71 mm	0.264 in	Male Pin	Copper Alloy	25 A	0.181 in	4.6 mm	Board Lock Mounting Flange Sealed
Amphenol Sine Systems Corp ATP15-2P-BM02GRY	Gold	2	Board to Cable/Wire	Panel Mount Through Hole	Gold	-55 °C	125 °C	Receptacle	IP67	1	All	Solder	250 VDC	Latch Holder	Circular	Shrouded - 4 Wall	Thermoplastic	1.339 "	34 mm	Gray	6.71 mm	0.264 in	Male Pin	Copper Alloy	25 A	0.181 in	4.6 mm	Board Lock Mounting Flange Potting Wall Sealed
Amphenol Sine Systems Corp ATP15-2P-BM01GRY	Gold	2	Board to Cable/Wire	Panel Mount Through Hole	Gold	-55 °C	125 °C	Receptacle	IP67	1	All	Solder	250 VDC	Latch Holder	Circular	Shrouded - 4 Wall	Thermoplastic	1.339 "	34 mm	Gray	6.71 mm	0.264 in	Male Pin	Copper Alloy	25 A	0.181 in	4.6 mm	Board Lock Mounting Flange Sealed
Amphenol Sine Systems Corp ATP15-2P-BM02BLK	Gold	2	Board to Cable/Wire	Panel Mount Through Hole	Gold	-55 °C	125 °C	Receptacle	IP67	1	All	Solder	250 VDC	Latch Holder	Circular	Shrouded - 4 Wall	Thermoplastic	1.339 "	34 mm	Black	6.71 mm	0.264 in	Male Pin	Copper Alloy	25 A	0.181 in	4.6 mm	Board Lock Mounting Flange Potting Wall Sealed
Amphenol Sine Systems Corp ATP15-2P-BM03BLK	Tin	2	Board to Cable/Wire	Panel Mount Through Hole		-55 °C	125 °C	Receptacle	IP67	1	All	Solder	250 VDC	Latch Holder	Circular	Shrouded - 4 Wall	Thermoplastic	1.339 "	34 mm	Black	6.71 mm	0.264 in	Male Pin	Copper Alloy	25 A	0.181 in	4.6 mm	Board Lock Mounting Flange Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.80

Description

General part information

ATP15-2P Series

Connector Header Panel Mount, Through Hole 2 position 0.264" (6.71mm)
