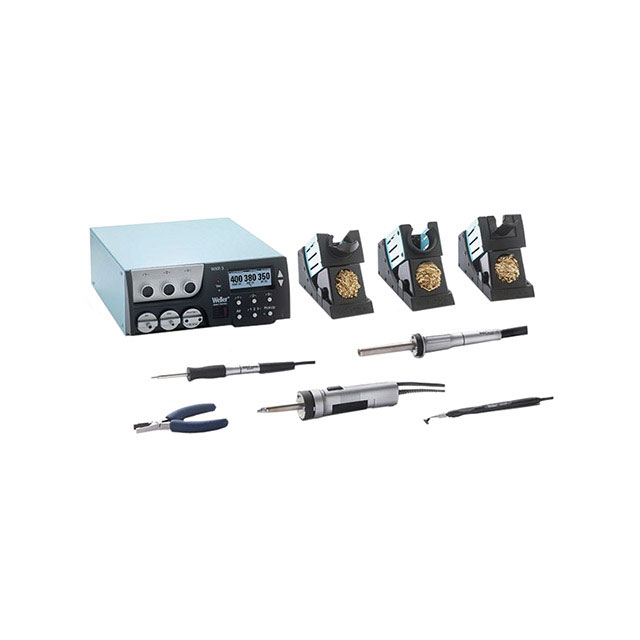

WXR3003N

Active

Apex Tool Group

SOLDER REWORK STA 600W 3 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDER REWORK STA 600W 3 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WXR3003N

Base Unit	WXR3
Control/Display Type	Digital
Features	Vacuum, ESD Safe, USB Interface
Includes	Tips (4), Iron Holders (3)
Number of Channels [custom]	3
Plug Type	Not Specified, Included
Supplied Iron, Tweezer, Handle	WXHAP200, WXP65, WXDV120
Supplied Tips/Nozzles	RO4, XDS5, XDS3, RO6, XTNA
Temperature Range	550 °C
Temperature Range	999 °F
Type	Desoldering, Soldering, Rework
Voltage - Input	120 V
Voltage - Output	24 V
Wattage	600 W
Workstand	WDH10, WDH70, WDH40

Part	Base Unit	Plug Type	Number of Channels [custom]	Features	Voltage - Input	Wattage	Voltage - Output	Includes	Supplied Tips/Nozzles	Workstand	Type	Supplied Iron, Tweezer, Handle	Temperature Range	Temperature Range	Control/Display Type
Apex Tool Group WXR3003N	WXR3	Included Not Specified	3	ESD Safe USB Interface Vacuum	120 V	600 W	24 V	Iron Holders (3) Tips (4)	RO4 RO6 XDS3 XDS5 XTNA	WDH10 WDH40 WDH70	Desoldering Rework Soldering	WXDV120 WXHAP200 WXP65	550 °C	999 °F	Digital

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3490.00

General part information

SOLDER REWORK STA 600W 3 CH 120V
