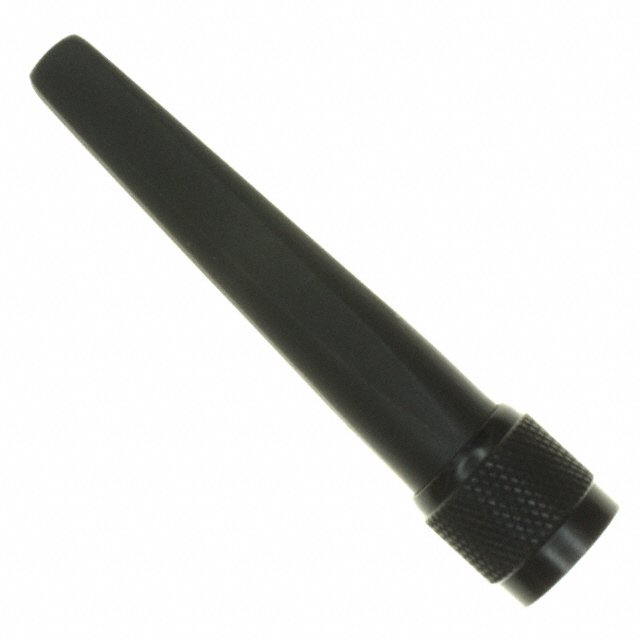

S325TC-915
ActiveNearson Inc.
RF ANT 915MHZ WHIP STR TNC MALE
Deep-Dive with AI
Search across all available documentation for this part.
S325TC-915
ActiveNearson Inc.
RF ANT 915MHZ WHIP STR TNC MALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S325TC-915 |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 928 MHz |
| Frequency Range [Min] | 902 MHz |
| Gain | 0 dBi |
| Height (Max) [Max] | 2.764 in |
| Height (Max) [Max] | 70.2 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Termination | TNC Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.66 | |
| 10 | $ 10.41 | |||
| 25 | $ 9.31 | |||
| 100 | $ 8.09 | |||
| 250 | $ 7.50 | |||
| 500 | $ 7.14 | |||
| 1000 | $ 6.84 | |||
Description
General part information
S325TC Series
RF ANTENNA Whip, Straight TNC Male Connector Mount
Documents
Technical documentation and resources
No documents available
