AK09970D

Obsolete

Asahi Kasei Microdevices Corporation

IC 3D MAGNETIC SENSOR

Search across all available documentation for this part.

Obsolete

Asahi Kasei Microdevices Corporation

IC 3D MAGNETIC SENSOR

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Range	Axis [z]	Axis [y]	Axis [x]	Features	Supplier Device Package	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Mounting Type	Resolution	Sensing Range [Max]	Sensing Range [Min]
Asahi Kasei Microdevices Corporation AK09970N	16-WFQFN Exposed Pad	85 °C	-40 °C	39 mT	Z	Y	X	Selectable Scale	16-QFN (3x3)	Hall Effect	3.6 V	1.7 V	I2C SPI	Surface Mount	16 b
Asahi Kasei Microdevices Corporation AK09970D	6-UFBGA WLCSP	85 °C	-40 °C		Z	Y	X	Selectable Scale	6-WLCSP (1.35x1.35)	Hall Effect	3.6 V	1.7 V	I2C	Surface Mount	16 b	36 mT	-36 mT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

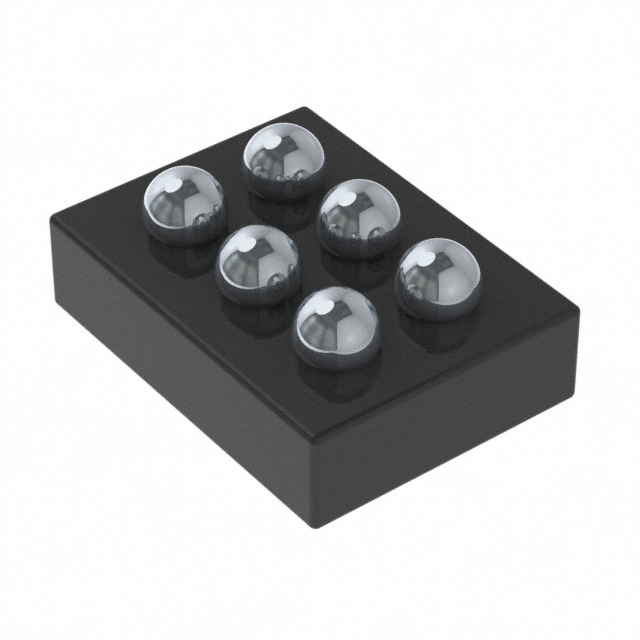

Hall Effect Sensor X, Y, Z Axis 6-WLCSP (1.35x1.35)
