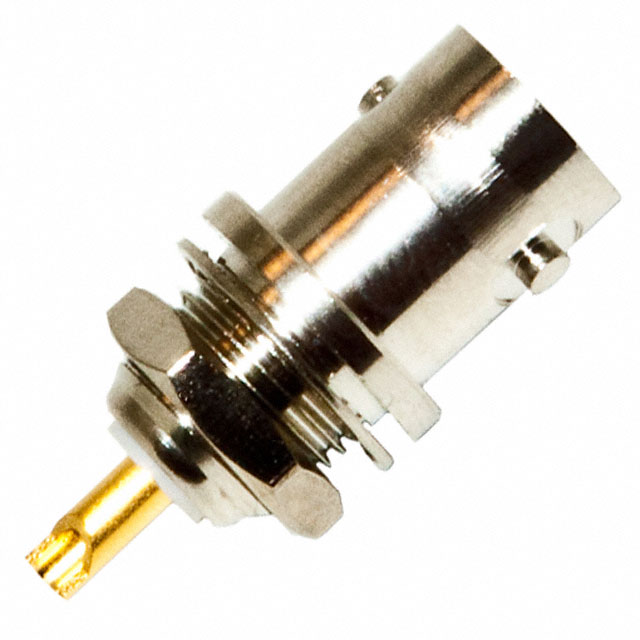

BU-P4160

Active

Mueller Electric Co

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Search across all available documentation for this part.

Active

Mueller Electric Co

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P4160

Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-70 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Plating	Mounting Feature	Number of Ports	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Contact Termination	Impedance	Dielectric Material	Body Material	Connector Style	Voltage Rating	Shield Termination	Center Contact Material
Mueller Electric Co BU-P4160	Gold	Bulkhead - Rear Side Nut	1	1 Connector 1 Lockwasher 1 Nut	-70 °C	170 °C	Bayonet Lock	Female Socket Jack	Solder Cup	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	BNC	500 V	Solder	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
