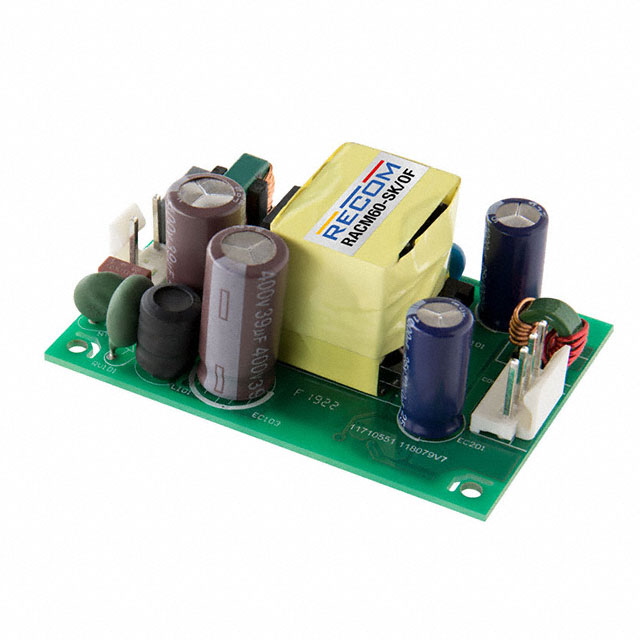

RACM60-05SK/OF

Active

RECOM Power

AC/DC OPEN FRAME POWER SUPPLY (PSU), 120 TO 370VDC, MEDICAL, 1 OUTPUT, 40 W, 80V AC TO 264V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

RACM60-05SK/OF

Active

RECOM Power

AC/DC OPEN FRAME POWER SUPPLY (PSU), 120 TO 370VDC, MEDICAL, 1 OUTPUT, 40 W, 80V AC TO 264V AC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RACM60-05SK/OF

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CB, cURus, CE
Current - Output 1	8 A
Efficiency	89 %
Features	Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Size / Dimension [x]	3.09 "
Size / Dimension [x]	78.4 mm
Size / Dimension [y]	53 mm
Size / Dimension [y]	2.09 "
Size / Dimension [z]	1.24 "
Size / Dimension [z]	31.5 mm
Standard Number	60335-1, 60601-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	80 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

RACM60-K/OF Series

Switching Power Supplies 60W 80-264Vin24Vout 2.5A Open Frame 2x4

Part	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Number of Outputs	Standard Number	Current - Output 1	Applications	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Efficiency	Type	Approval Agency	Current - Output (Max) [Max]	Package / Case
RECOM Power RACM60-05SK/OF	264 VAC 370 VDC	80 VAC 120 VDC	40 W	4000 V	85 °C	-40 °C	Universal Input	Chassis Mount	1	60335-1 60601-1 62368-1	8 A	Household Appliances ITE (Commercial) Medical	5 V	3.09 "	53 mm	78.4 mm	2.09 "	1.24 "	31.5 mm	89 %	Open Frame	CB CE cURus
RECOM Power RACM60-24SK/OF-CTN	264 VAC 370 VDC	80 VAC 120 VDC		4000 V	85 °C	-40 °C	Universal Input	Chassis Mount	1	60335-1 60601-1 62368-1	2.5 A	Household Appliances ITE (Commercial) Medical	24 V	3.09 "	53 mm	78.4 mm	2.09 "	1.24 "	31.5 mm	90 %	Open Frame	CB CE cURus
RECOM Power RACM60-12SK/OF/2X4	264 VAC 370 VDC	80 VAC 120 VDC		4000 V	85 °C	-40 °C	Universal Input	Chassis Mount	1	60335-1 60601-1 62368-1	5 A	Household Appliances ITE (Commercial) Medical	12 V	4 in	53 mm	101.6 mm	2.09 "	1.24 "	31.5 mm	90 %	Open Frame	CB CE cURus
RECOM Power RACM60-24SK/OF	264 VAC 370 VDC	80 VAC 120 VDC		4000 V	85 °C	-40 °C	Universal Input	Chassis Mount	1	60335-1 60601-1 62368-1	2.5 A	Household Appliances ITE (Commercial) Medical	24 V	3.09 "	53 mm	78.4 mm	2.09 "	1.24 "	31.5 mm	90 %	Open Frame	CB CE cURus
RECOM Power RACM60-12SK/OF/PCB-T	264 VAC 370 VDC	80 VAC 120 VDC	60 W		85 °C	-40 °C	Universal Input	Through Hole	1			Household Appliances ITE (Commercial) Medical	12 V	3.09 "	53 mm	78.4 mm	2.09 "	1.39 in	35.4 mm	90 %	Open Frame	CB CE cURus	5 A	7-DIP Module 6 Leads
RECOM Power RACM60-48SK/OF-CTN	264 VAC 370 VDC	80 VAC 120 VDC		4000 V	85 °C	-40 °C	Universal Input	Chassis Mount	1	60335-1 60601-1 62368-1	1.25 A	Household Appliances ITE (Commercial) Medical	48 V	3.09 "	53 mm	78.4 mm	2.09 "	1.24 "	31.5 mm	90 %	Open Frame	CB CE cURus
RECOM Power RACM60-24SK/OF/2X4	264 VAC 370 VDC	80 VAC 120 VDC		4000 V	85 °C	-40 °C	Universal Input	Chassis Mount	1	60335-1 60601-1 62368-1	2.5 A	Household Appliances ITE (Commercial) Medical	24 V	4 in	53 mm	101.6 mm	2.09 "	1.24 "	31.5 mm	90 %	Open Frame	CB CE cURus
RECOM Power RACM60-05SK/OF/PCB-T	264 VAC 370 VDC	80 VAC 120 VDC	40 W		85 °C	-40 °C	Universal Input	Through Hole	1			Household Appliances ITE (Commercial) Medical	5 V	3.09 "	53 mm	78.4 mm	2.09 "	1.39 in	35.4 mm	89 %	Open Frame	CB CE cURus	8 A	7-DIP Module 6 Leads
RECOM Power RACM60-36SK/OF	264 VAC 370 VDC	80 VAC 120 VDC		4000 V	85 °C	-40 °C	Universal Input	Chassis Mount	1	60335-1 60601-1 62368-1		Household Appliances ITE (Commercial) Medical	36 V	3.09 "	53 mm	78.4 mm	2.09 "	1.24 "	31.5 mm	90 %	Open Frame	CB CE cURus
RECOM Power RACM60-15SK/OF	264 VAC 370 VDC	80 VAC 120 VDC		4000 V	85 °C	-40 °C	Universal Input	Chassis Mount	1	60335-1 60601-1 62368-1	4 A	Household Appliances ITE (Commercial) Medical	15 V	3.09 "	53 mm	78.4 mm	2.09 "	1.24 "	31.5 mm	90 %	Open Frame	CB CE cURus

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 26.75
		5	$ 25.96
		10	$ 25.18
		25	$ 24.39
		50	$ 23.60
		100	$ 22.82
		250	$ 22.03
		500	$ 19.48
Newark	Each	1	$ 33.50
		25	$ 30.70
		50	$ 28.52
		100	$ 27.58
		250	$ 26.65
Sager	N/A	1	$ 25.97
		5	$ 24.36
		10	$ 23.26
		25	$ 22.25
		50	$ 21.36
		100	$ 19.99
		250	$ 19.01

Description

General part information

RACM60-K/OF Series

Switching Power Supplies 60W 80-264Vin24Vout 2.5A Open Frame 2x4
