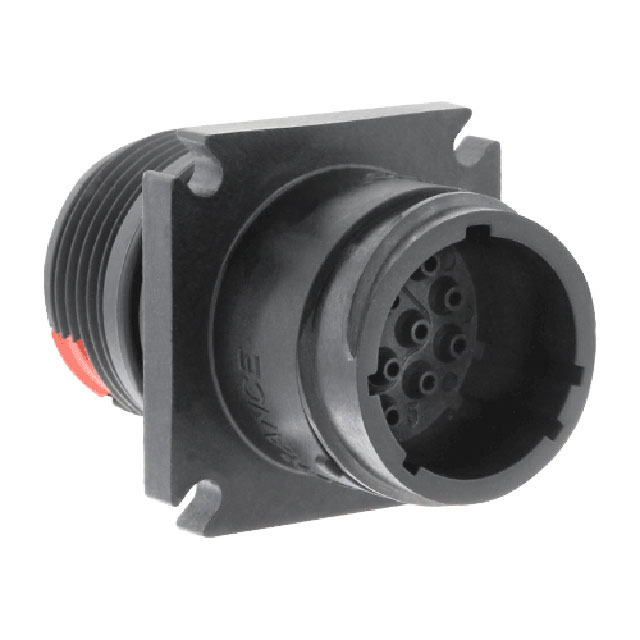

CL1M2200

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 14POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CL1M2200

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 14POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CL1M2200

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shell Size - Insert [Max]	2
Shell Size - Insert [Min]	2
Shielding	Unshielded
Type	For Male Pins

CL1M Series

Part	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Material Flammability Rating	Orientation	Mounting Feature	Type	Note	Number of Positions	Shielding	Connector Type	Contact Size	Contact Type	Insert Material	Ingress Protection	Contact Shape	Shell Material	Housing Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Souriau-Sunbank by Eaton CL1M1101	1-1	125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	4	Unshielded	Receptacle Housing	16	Crimp and Solder Cup	Thermoplastic	IP67 - Dust Tight Waterproof	Circular	Thermoplastic Halogen Free	Black
Souriau-Sunbank by Eaton CL1M2200		125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	14	Unshielded	Receptacle Housing	20	Crimp and Solder Cup	Thermoplastic	IP40	Circular	Thermoplastic Halogen Free	Black	2	2
Souriau-Sunbank by Eaton CL1M4101	4-1	125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	26	Unshielded	Receptacle Housing	16	Crimp and Solder Cup	Thermoplastic	IP67 - Dust Tight Waterproof	Circular	Thermoplastic Halogen Free	Black
Souriau-Sunbank by Eaton CL1M1100	1-1	125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	4	Unshielded	Receptacle Housing	16	Crimp and Solder Cup	Thermoplastic	IP40	Circular	Thermoplastic Halogen Free	Black
Souriau-Sunbank by Eaton CL1M2101		125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	9	Unshielded	Receptacle Housing	16	Crimp and Solder Cup	Thermoplastic	IP67 - Dust Tight Waterproof	Circular	Thermoplastic Halogen Free	Black
Souriau-Sunbank by Eaton CL1M1202		125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	9	Unshielded	Receptacle Housing	20	Crimp and Solder Cup	Thermoplastic	IP68 - Dust Tight Waterproof	Circular	Thermoplastic Halogen Free	Black	2	1
Souriau-Sunbank by Eaton CL1M4202		125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	40	Unshielded	Receptacle Housing	16	Crimp and Solder Cup	Thermoplastic	IP68 - Dust Tight Waterproof	Circular	Thermoplastic Halogen Free	Black	4	2
Souriau-Sunbank by Eaton CL1M1200		125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	9	Unshielded	Receptacle Housing	20	Crimp and Solder Cup	Thermoplastic	IP40	Circular	Thermoplastic Halogen Free	Black	2	1
Souriau-Sunbank by Eaton CL1M4102	4-1	125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	26	Unshielded	Receptacle Housing	16	Crimp and Solder Cup	Thermoplastic	IP68 - Dust Tight Waterproof	Circular	Thermoplastic Halogen Free	Black
Souriau-Sunbank by Eaton CL1M2102		125 °C	-40 °C	Twist Latch	UL94 V-0	Keyed	Flange	For Male Pins	Contacts Not Included	9	Unshielded	Receptacle Housing	16	Crimp and Solder Cup	Thermoplastic	IP68 - Dust Tight Waterproof	Circular	Thermoplastic Halogen Free	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.29

Description

General part information

CL1M Series

14 Position Circular Connector Receptacle Housing Panel Mount
