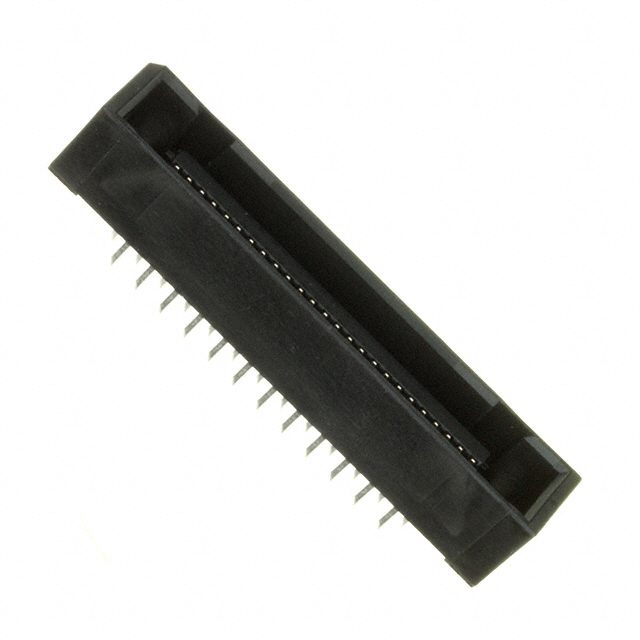

TX25-50P-6ST-N1E

Active

JAE Electronics

BOARD STACKING CONNECTOR, 50 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, PLUG, LEAD FREE

Search across all available documentation for this part.

Active

JAE Electronics

BOARD STACKING CONNECTOR, 50 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, PLUG, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
JAE Electronics TX25-50P-LT-H1E	50	9 mm	0.354 in	0.05 in	1.27 mm	Through Hole Right Angle	Gold	2	4 Áin	0.1 Ám
JAE Electronics TX25-50P-6ST-N1E	50	9.2 mm	0.362 in	0.05 in	1.27 mm	Through Hole	Gold	2	4 Áin	0.1 Ám	12 mm 16 mm 18 mm
JAE Electronics TX25-50P-8ST-H1E	50	11.2 mm	0.441 in	0.05 in	1.27 mm	Through Hole	Gold	2	4 Áin	0.1 Ám	14 mm 18 mm 20 mm
JAE Electronics TX25-50P-6ST-H1E	50	9.2 mm	0.362 in	0.05 in	1.27 mm	Through Hole	Gold	2	4 Áin	0.1 Ám	12 mm 16 mm 18 mm
JAE Electronics TX25-50P-8ST-N1E	50	11.2 mm	0.441 in	0.05 in	1.27 mm	Through Hole	Gold	2	4 Áin	0.1 Ám	14 mm 18 mm 20 mm
JAE Electronics TX25-50P-LT-N1E	50	9 mm	0.354 in	0.05 in	1.27 mm	Through Hole Right Angle	Gold	2	4 Áin	0.1 Ám
JAE Electronics TX25-50P-6ST-E1E	50			0.05 in	1.27 mm	Through Hole	Gold	2	4 Áin	0.1 Ám	12 mm 16 mm 18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Connector Plug, Center Strip Contacts Through Hole Gold
