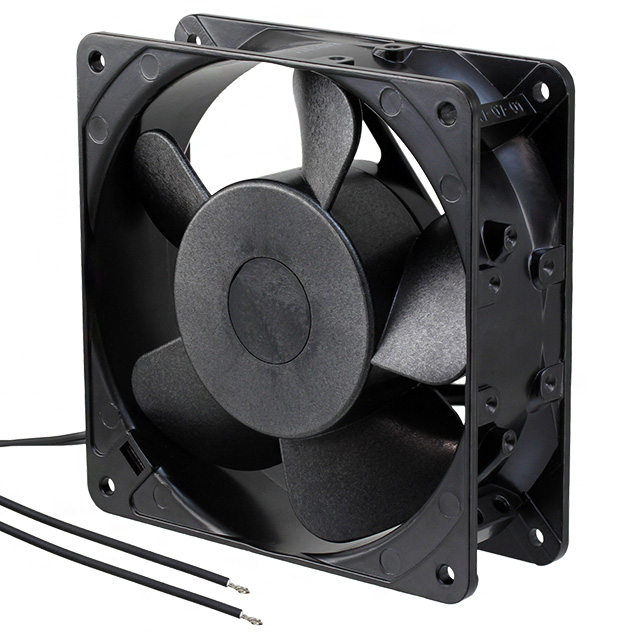

4715MS-12W-B10-A00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38MM 115VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4715MS-12W-B10-A00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38MM 115VAC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4715MS-12W-B10-A00

Air Flow	49.4 CFM
Air Flow	1.38 m³/min
Approval Agency	CSA, UL, VDE, CE, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polycarbonate (PC), Fiberglass Reinforced
Material - Frame	Aluminum
Noise	28 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	5.5 W
RPM	1450 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.066 in H2O
Static Pressure	16.6 Pa
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Width [y]	38 mm

4715MS Series

Part	Material - Frame	Approval Agency	Noise	Material - Blade	Fan Type	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Width [y]	Air Flow	Air Flow	Power (Watts)	Termination	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Static Pressure	Static Pressure	Current Rating (Amps)
NMB TECHNOLOGIES 4715MS-23T-B30-A00	Aluminum	CE CSA TUV UL VDE	37 dB	Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	88.2 CFM	2.47 m³/min	11 W	2 Terminals	2600 RPM	70 °C	70 °C	-10 °C	-10 °C	230 VAC	0.208 in H2O	51.9 Pa
NMB TECHNOLOGIES 4715MS-20T-B50-B00	Aluminum	CE CSA TUV UL VDE	41 dB	Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	102 CFM	2.86 m³/min	13 W	2 Terminals	2900 RPM	70 °C	70 °C	-10 °C	-10 °C	200 VAC	0.306 in H2O	76.4 Pa	120 mA
NMB TECHNOLOGIES 4715MS-23T-B5A-A00	Aluminum	CE CSA TUV UL VDE	41 dB	Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	102 CFM	2.86 m³/min	14 Watts	2 Terminals	2900 RPM	70 °C	70 °C	-10 °C	-10 °C	230 VAC	0.283 in H2O	70.5 Pa	100 mA
NMB TECHNOLOGIES 4715MS-22T-B10-B00	Aluminum	CE CSA TUV UL VDE	28 dB	Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	49.4 CFM	1.38 m³/min	5.5 W	2 Terminals	1450 RPM	70 °C	70 °C	-10 °C	-10 °C	220 VAC	0.059 in H2O	14.7 Pa	40 mA
NMB TECHNOLOGIES 4715MS-24T-B20-A00	Aluminum	CE CSA TUV UL VDE		Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	67 CFM	1.88 m³/min	8 W	2 Terminals	1900 RPM	70 °C	70 °C	-10 °C	-10 °C	240 VAC	0.098 in H2O	24.5 Pa	60 mA
NMB TECHNOLOGIES 4715MS-12T-B3A-A00	Aluminum	CE CSA TUV UL VDE	37 dB	Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	88.2 CFM	2.47 m³/min	10 W	2 Terminals	2600 RPM	70 °C	70 °C	-10 °C	-10 °C	115 VAC	0.2 in H2O	49.8 Pa	140 mA
NMB TECHNOLOGIES 4715MS-12W-B10-A00	Aluminum	CE CSA TUV UL VDE	28 dB	Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	49.4 CFM	1.38 m³/min	5.5 W	2 Wire Leads	1450 RPM	70 °C	70 °C	-10 °C	-10 °C	115 VAC	0.066 in H2O	16.6 Pa
NMB TECHNOLOGIES 4715MS-22T-B30-B00	Aluminum	CE CSA TUV UL VDE	37 dB	Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	88.2 CFM	2.47 m³/min	10 W	2 Terminals	2600 RPM	70 °C	70 °C	-10 °C	-10 °C	220 VAC	0.189 in H2O	47.1 Pa
NMB TECHNOLOGIES 4715MS-12T-B4A-A00	Aluminum	CE CSA TUV UL VDE	39 dB(A)	Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	95 CFM	2.66 m³/min	13 W	2 Terminals	2750 RPM	70 °C	70 °C	-10 °C	-10 °C	115 VAC	0.259 in H2O	64.6 Pa	0.19 A
NMB TECHNOLOGIES 4715MS-24T-B40-A00	Aluminum	CE CSA TUV UL VDE	39 dB(A)	Fiberglass Reinforced Polycarbonate (PC)	Tubeaxial	50000 Hrs	119 mm	119 mm	Ball	38 mm	95 CFM	2.66 m³/min	12 W	2 Terminals	2750 RPM	70 °C	70 °C	-10 °C	-10 °C	240 VAC	0.236 in H2O	58.8 Pa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4715MS Series

Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 49.4 CFM (1.38mł/min) 2 Wire Leads
