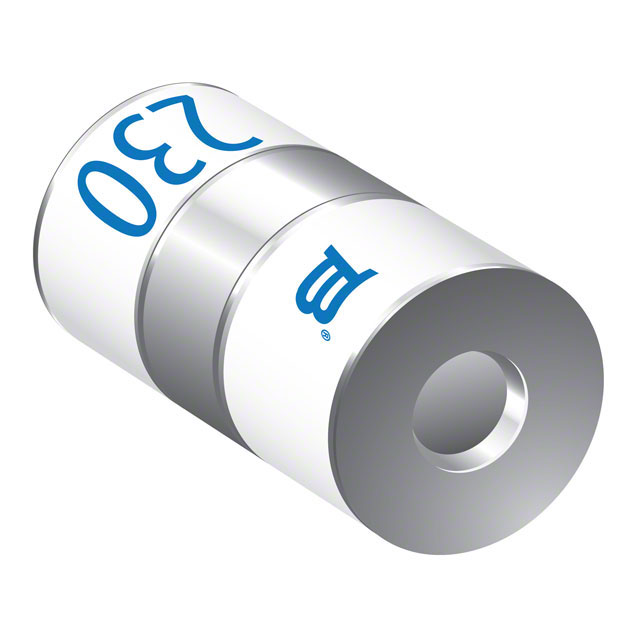

2056-14-ALF

Active

Bourns Inc.

GDT 145V 5KA 3 POLE

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 145V 5KA 3 POLE

Technical Specifications

Parameters and characteristics for this part

Specification	2056-14-ALF

Fail Short	False
Impulse Discharge Current (8/20µs)	5000 A
Impulse Discharge Current (8/20µs)	5 kA
Mounting Type	User Defined
Number of Poles	3
Package / Case	Cylinder No Lead, 3 Terminal
Tolerance	20 %
Voltage - DC Spark Over (Nom)	145 V

Part	Voltage - DC Spark Over (Nom)	Mounting Type	Number of Poles	Package / Case	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Tolerance
Bourns Inc. 2056-60-B2LF	600 V	Through Hole	3	Axial Cylinder 3 Lead (Radial Bend)	5000 A	5 kA	20 %
Bourns Inc. 2056-60-B3LF	600 V	Through Hole	3	Axial Cylinder 3 Lead (Radial Bend)	5000 A	5 kA	20 %
Bourns Inc. 2056-14-B3LF	145 V	Through Hole	3	Axial Cylinder 3 Lead (Radial Bend)	5000 A	5 kA	20 %
Bourns Inc. 2056-14-ALF	145 V	User Defined	3	Cylinder No Lead 3 Terminal	5000 A	5 kA	20 %
Bourns Inc. 2056-35-B3FLF	350 V	Through Hole	3	Axial Cylinder 3 Lead (Radial Bend)	5000 A	5 kA	20 %
Bourns Inc. 2056-23-B3LF	230 V	Through Hole	3	Axial Cylinder 3 Lead (Radial Bend)	5000 A	5 kA	20 %
Bourns Inc. 2056-14-B2FLF	145 V	Through Hole	3	Axial Cylinder 3 Lead (Radial Bend)	5000 A	5 kA	20 %
Bourns Inc. 2056-47-B2FLF	470 V	Through Hole	3	Axial Cylinder 3 Lead (Radial Bend)	5000 A	5 kA	20 %
Bourns Inc. 2056-25-B2LF	250 V	Through Hole	3	Axial Cylinder 3 Lead (Radial Bend)	5000 A	5 kA	20 %
Bourns Inc. 2056-25-B3LF	250 V	Through Hole	3	Axial Cylinder 3 Lead (Radial Bend)	5000 A	5 kA	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 0.63

General part information

Gas Discharge Tube 145 V 5000A (5kA) ±20% 3 Pole User Defined
