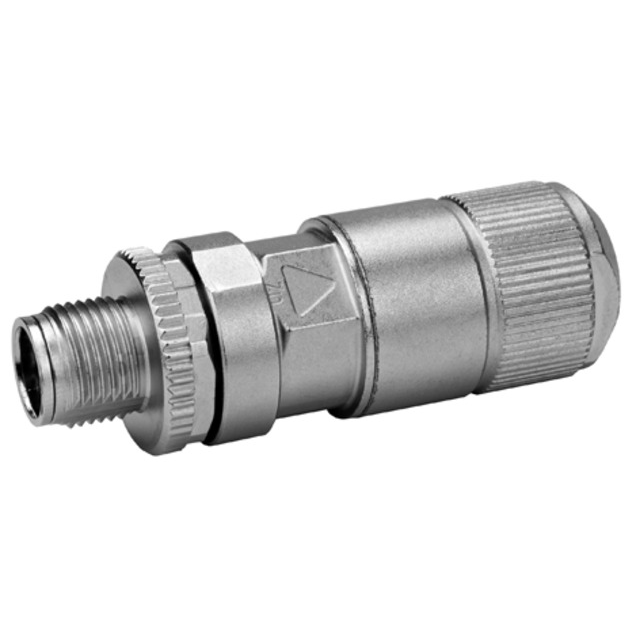

M12X-CP IDC FIELD C6A D5.5-9

Search across all available documentation for this part.

Active

Telegartner Inc

M12X-CP IDC FIELD C6A D5.5-9

Technical Specifications

Parameters and characteristics for this part

Specification	100007499

Applications	Industrial
Backshell Material, Plating	Brass and Zinc Die Cast, Nickel
Cable Opening [Max] [custom]	9 mm
Cable Opening [Max] [custom]	0.354 in
Cable Opening [Min] [custom]	0.217 in
Cable Opening [Min] [custom]	5.5 mm
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	31.5 µin
Contact Finish Thickness - Mating	0.8 µm
Contact Material	Brass
Current Rating (Amps)	0.5 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	X
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Zinc Die Cast
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	IDC
Voltage Rating	50 VAC, 60 VDC

Part	Material Flammability Rating	Shell Material	Contact Material	Mounting Type	Orientation	Applications	Color	Shell Size - Insert	Backshell Material, Plating	Current Rating (Amps)	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Ingress Protection	Shielding	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Number of Positions	Features	Insert Material	Contact Finish - Mating	Connector Type	Voltage Rating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [Max] [custom]
Telegartner Inc 100007500	UL94 HB	Brass and Zinc Die Cast	Brass	Free Hanging (In-Line)	D	Industrial	Silver	M12-4	Brass and Zinc Die Cast Nickel	4 A	Metal	85 °C	-40 °C	Nickel	IP67 - Dust Tight Waterproof	Shielded	5 mm	0.197 in	8 mm	0.315 in	4	Backshell	Nylon Polyamide (PA)	Gold	Male Pins Receptacle	250 VDC	Screw
Telegartner Inc 100007501	UL94 V-0	Brass	Brass	Free Hanging (In-Line)	D	Industrial	Silver	M12-4	Brass Nickel	4 A	Metal	85 °C	-40 °C	Nickel	IP67 - Dust Tight Waterproof	Unshielded	5 mm	0.197 in	9 mm	0.354 in	4	Backshell	Nylon Polyamide (PA)	Gold	Male Pins Receptacle	250 VAC	IDC
Telegartner Inc 100007499	UL94 V-0	Brass and Zinc Die Cast	Brass	Free Hanging (In-Line)	X	Industrial	Silver	M12-8	Brass and Zinc Die Cast Nickel	0.5 A	Metal	85 °C	-40 °C	Nickel	IP67 - Dust Tight Waterproof	Shielded	5.5 mm	0.217 in		0.354 in	8	Backshell	Nylon Polyamide (PA)	Gold	Male Pins Receptacle	50 VAC 60 VDC	IDC	31.5 µin	0.8 µm	9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (Data) Position Circular Connector Receptacle, Male Pins IDC
